Silicon Labs BGM240P Modules
Silicon Labs BGM240P Modules are optimized for battery and line-powered IoT devices running on BLUETOOTH® networks. The modules are based on the Series 2 EFR32BG24 SoC. The modules enable Bluetooth® Low Energy connectivity, for exceptional RF performance, and energy efficiency. The BGM240P has Secure Vault® technology and future-proofing capabilities. The modules are a complete solution with robust and fully-upgradeable software stacks, global regulatory certifications, advanced development, and debugging tools.
Features
- 32-bit ARM® Cortex®-M33 core with 78MHz maximum operating frequency
- 1536kB of flash and 256kB of RAM
- High-performance radio with up to +19.6dBm output power
- Energy efficient design with low active and sleep currents
- Robust peripheral set and up to 26 GPIO
- Secure Vault™
- Regulatory Certifications
- CE (EU)
- UKCA (UK)
- FCC (USA)
- ISED (Canada)
- MIC (Japan)
- KC (South Korea)
Applications
- Smart Home - Gateways/Hubs, sensors, switches, door locks, smart plugs
- Protocol Stacks
- BLE
- BLUETOOTH® Mesh
Related Products
Silicon Labs MGM240P Modules
Optimized for battery and line-powered IoT devices for 2.4GHz mesh networks.
Radio Boards
Silicon Labs XGM240 Radio Boards
Designed to work with the WSTK main boards (not included).
Block Diagram

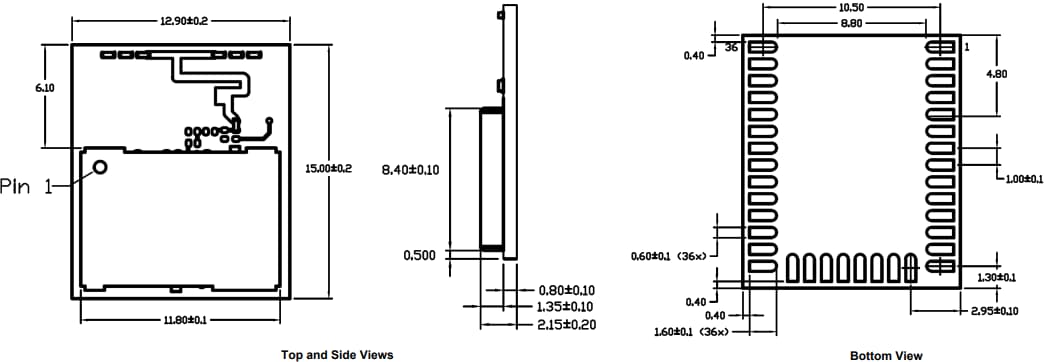

Package Outline
