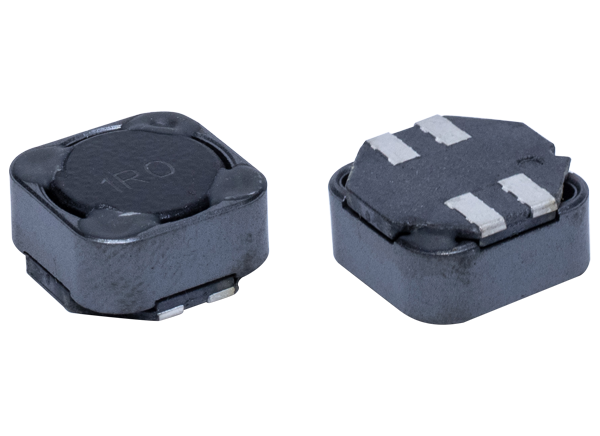

Bourns SRF Dual Winding Shielded Power Inductors

Bourns SRFxxxx Dual Winding Shielded Power Inductors are magnetically shielded, low radiation inductors with multiple applications: parallel, series, dual-inductor, and transformer. The RoHS compliant SRF Series features an inductance range from 0.33µH to 4000µH and a rated current from 6.19A to 17.9A. The Bourns SRF Dual Winding Shielded Power Inductors are ideal for SEPIC topology and power supplies for communications, computers, LCDs, flat panels, backlights, camcorders, HDTVs, and car audio systems.

Features

  • Magnetically shielded, low radiation
  • -40 °C to +105 °C operating temperature range
  • RoHS compliant

Materials

  • Ferrite core
  • Enameled copper wire
  • LCP base
  • Epoxy resin adhesive
  • Cu/Ni/Sn terminal

Applications

  • SEPIC topology
  • Power supplies for:
    • Communication equipment
    • Notebooks, desktop computers, servers
    • LCDs, flat panels, backlights
    • Camcorders, HDTVs, car audio system
