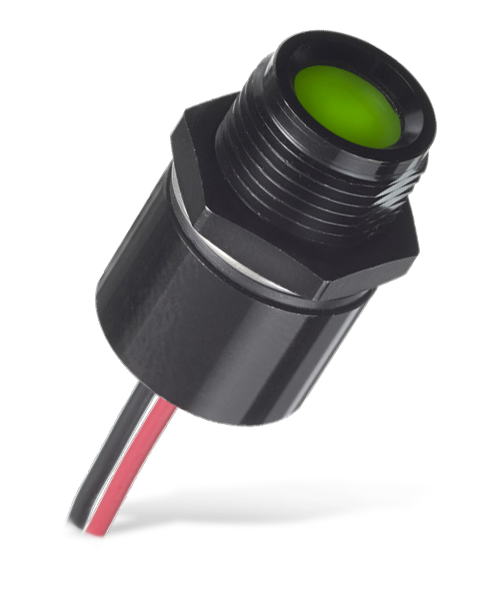

APEM QRM14 Rear Panel Mount LED Indicators

APEM QRM14 Rear Panel Mount LED Indicators are 14mm devices with a 10mm flush diffused standard, hyper-bright, or water clear LED. Bi-color and tri-color LED options are available. The QRM14 components operate from 2VDC to 28VAC/DC with 200mm wires. This series is IP67 sealed (EN60529) with epoxy sealed rear end and has a black chrome finish.  Supplied accessories include a fixing nut, spring washer, and O-ring.

Features

  • 14mm rear panel mount LED indicator
  • 10mm flush diffused LED, standard, hyper-bright, or water clear
  • Bi-color and Tri-color LED options
  • Black chrome finish
  • 2VDC to 28VAC/DC
  • 200mm wires
  • IP67 sealed (EN60529)
  • Epoxy sealed rear end
  • Supplied with fixing nut, spring washer, and O-ring

Applications

  • Control panels
  • Remote controls
  • Battery charging indications
  • Marine
  • Automotive industry

Specifications

  • 20mA operating current
  • 5V maximum reverse voltage
  • 60° viewing angle
  • 100,000-hour life expectancy
  • Temperature ranges
    • -40°C to +85°C operating
    • -55°C to +100°C storage
  • 10mm maximum panel thickness
  • 75cNm torque
  • black, chrome-plated brass body and nut
  • Nitrile O-ring
  • Spring steel lock washer
  • Epoxy terminal seal
  • 22AWG to UL1061 wires

Dimensions

APEM QRM14 Rear Panel Mount LED Indicators
