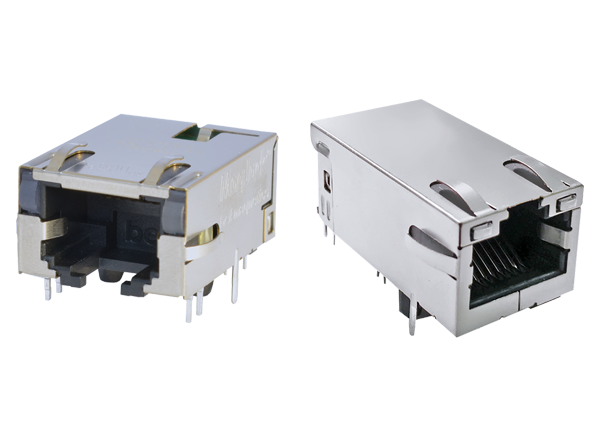

TRP Connector / Bel 10GBASE-T MagJack® Integrated Connector Modules (ICMs) are designed for users using Marvell Semiconductor 10GBASE-T Ethernet physical-layer devices (PHYs). The 10GBASE-T ICMs offer maximum speed over twisted-pair copper cables, up to ten times over standard Gigabit Ethernet technology. The components are backward compatible with existing Ethernet networks and are designed for next-generation 5G applications. The TRP Connector / Bel 10GBASE-T MagJack ICMs design is approved by Marvell Semiconductor.
Industry-standard footprints and pinouts
Drop-in replacement for 1GBASE-T products
Designs are approved by Marvell Semiconductor
Backward compatible down to 10/100BASE-T in existing networks
5G small cell radio devices
High-speed PCIe network interface cards
Low density, non-PoE 10GBASE-T Ethernet switches
Storage area networks
Meets all IEEE 802.3an, 10GBASE-T requirements
Meets RL, IL, hi-pot, and common mode parameters
50μ" Au contacts as required by the TIA 1096/FCC 47, Part 68
Enhanced EMI and ESD performance
RoHS 6/6 compliant
Marvell Semiconductor PHYs Ethernet M Multi-Gigabit Alasca
Compatíveis com as especificações NBASE-T Alliance para taxa de dados de 2,5G e 5G por cabos CAT5e.
