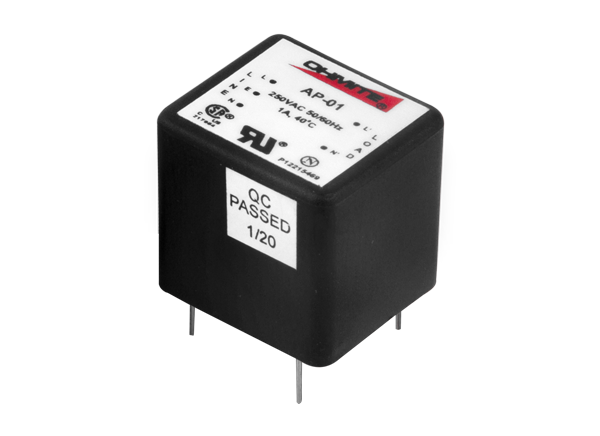

ARCOL / Ohmite AP Single-Phase EMI Filters

ARCOL / Ohmite AP Single-Phase Electromagnetic Interference (EMI) Filters feature a cost-effective plastic housing designed for standard applications. ARCOL / Ohmite AP Single-Phase EMI Filters provide protection against interference voltage. These PCB-mountable filters offer rated currents up to 6A.


  • PCB-mountable filters
  • Rated currents up to 6A
  • Medical versions available
  • High conducted attenuation performance
  • Plastic housing for standard applications
  • Protection against interference voltage
  • Cost-effective


  • 250VAC maximum continuous operating voltage
  • 50Hz / 60Hz operating frequency
  • 1A to 6A current ratings at +40°C
  • -25°C to +85°C operating temperature range


  • Switched-mode power supplies
  • Monitors
  • Programmable-logic controllers
  • Weighing scales
  • Electronic instruments
  • PC peripheral equipment
  • Microwave equipment
  • Office automation equipment

Circuit Diagram

Application Circuit Diagram - ARCOL / Ohmite AP Single-Phase EMI Filters
Publicado: 2020-02-12 | Atualizado: 2022-03-10
