Atmel / Microchip ATIO1-XPRO Xplained Pro Extension Board
Atmel / Microchip ATIO1-XPRO Xplained Pro Extension Board is an add-on board designed for use with the Xplained Pro Evaluation Kits. The Xplained Pro Extension Boards connect to the Xplained Pro Standard Extension Header on any Xplained Pro Microcontroller Board. Atmel / Microchip ATIO1-XPRO Extension Board adds a variety of functionality to the Xplained Pro Evaluation Kit, including a microSD Slot, a Temperature Sensor, a Light Sensor, and more.
Features
- Compatible with the Xplained Pro Extension Headers
- Auto-ID for board identification in Atmel Studio
- SPI: microSD card holder + microSD card
- PWM: LED control and filter input to ADC
- ADC: light sensor and PWM signal filtered into ADC
- UART: loopback interface via pin-header
- I2C: temperature sensor w/ EEPROM
- GPIO: spare GPIO available on 100-mil pitch headers

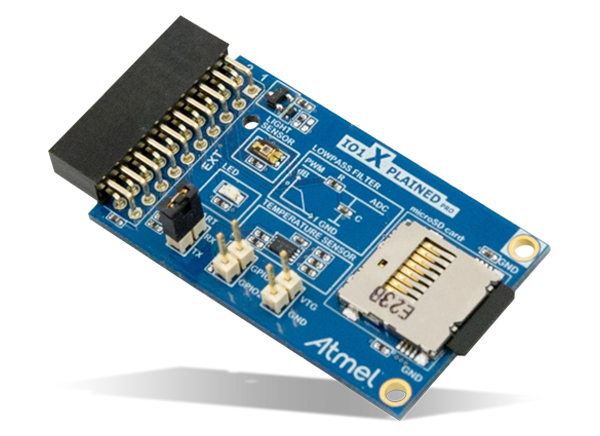

Board layout
Applicable Products
Microchip Technology Xplained Pro Evaluation Kits
A platform consisting of MCU boards and extension boards to develop Atmel MCUs.
