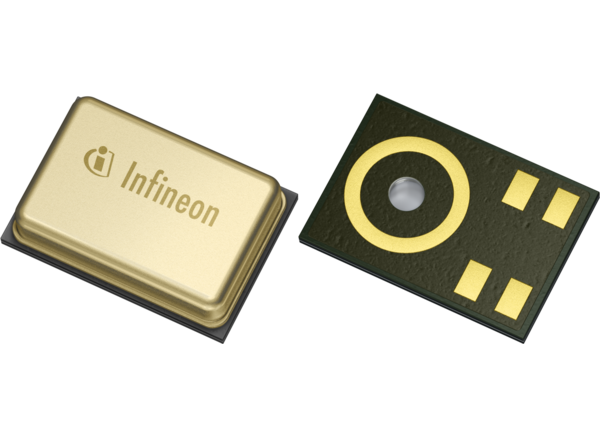

Infineon Technologies Microfones MEMS XENSIV™

Os microfones incluem tecnologia MEMS Dual Backplate, com base em um projeto de microfone simétrico miniaturizado, como aqueles utilizados em microfones condensadores de estúdio. Isso resulta em alta linearidade do sinal de saída dentro de uma faixa dinâmica de 95dB para o IM69D120 e 105dB para o IM69D130. Isto é combinado com uma distorção de nível excepcionalmente baixa de 10% a um nível de pressão sonora de 135dB (SPL).

IM69D128S

Great signal-to-noise ratio (SNR) of 69dB(A) enables a crystal clear audio experience without compromising on battery life. Enabled by a revolutionary digital microphone ASIC, the IM69D128S sets a benchmark by cutting current consumption to 520μA – almost half of what models with similar performance on the market can offer.  Additionally, IM69D128S masters the art of switching between different power and performance profiles without any audible artifacts, i.e., glitches that the user can hear.

View Product

IM70D122

High performance digital XENSIV MEMS microphone IM70D122 makes the most out of Infineon´s Sealed Dual Membrane technology to meet a very high signal-to-noise ratio of 70dB(A) and a very high sensitivity of -26dBFS. Especially thanks to its high sensitivity and high SNR, the IM70D122 is perfectly tailored for advanced audio capturing, which can uplift the audio experience for laptops, tablets, cameras, and conference systems.

View Product

IM73D122

Ultra-low noise digital XENSIV MEMS microphone IM73D122 is designed for applications that require a very high SNR (low self-noise) and high sensitivity. The flat frequency response (20Hz low-frequency roll-off) and tight manufacturing tolerance improve the performance of multi-microphone (array) applications. This microphone is based on Infineon's Sealed Dual Membrane MEMS technology, which delivers high ingress protection (IP57) at a microphone level.

View Product

IM68A130

The IM68A130 is a high-performance, single-ended, analog MEMS microphone designed for applications that require a low LFRO (10Hz), a high SNR (low self-noise), and low distortion (high AOP). The high signal-to-noise ratio (SNR) of 68dB(A) enables far-field and low-volume audio pick-up. The flat frequency response and tight manufacturing tolerance improve the performance of Active Noise Cancellation (ANC) and multi-microphone array applications.

View Product

IM70A135

Infineon’s XENSIV MEMS analog microphone IM70A135 is a compact, high-performance microphone with a very high acoustic overload point of 135dBSPL and a size of only 3.50mm x 2.65mm x 1.00mm³. This microphone is based on Infineon’s Sealed Dual Membrane MEMS technology, which delivers high ingress protection (IP57) at a microphone level. The small size makes this microphone especially suited for TWS earbud applications.

View Product

IM72D128V01

The IM72D128V01 is an ultra-high-performance digital microphone designed for applications that require a very high SNR (low self-noise) and low distortions (high AOP). This microphone is based on Infineon's Sealed Dual Membrane MEMS technology, which delivers high ingress protection (IP57) at a microphone level. The flat frequency response (20Hz low-frequency roll-off) and tight manufacturing tolerance improve the performance of multi-microphone (array) applications. Different power modes can be selected to suit specific clock frequencies and current consumption requirements.

View Product

IM69D127

IM69D127 is a digital high-performance MEMS microphone based on Infineon's Sealed Dual Membrane MEMS technology, which delivers high ingress protection (IP57) at a microphone level. Its small size of only 3.60mm x 2.50mm x 1.00mm³ makes it a perfect match for compact audio devices, like TWS earbuds.

View Product

IM73A135

Infineon’s XENSIV MEMS analog microphone IM73A135 features a signal-to-noise ratio (SNR) of 73dB and a high acoustic overload point of 135dBSPL to enable clear audio pick-up of the quietest and the loudest sounds. The IM73A135 allows designers to reach a level of high audio performance that was previously only achievable by ECMs while at the same time reaping the benefits inherent in MEMS technology.

View Product

Audiohub Nano

The Infineon Audiohub Nano Analogs EVAL AHNB ANALOGV01 enables the evaluation of Infineon analog XENSIV  MEMS microphones. The kit includes an Infineon Audiohub Nano and four analog microphones on a flex board. Up to two Infineon analog XENSIV MEMS microphones can be connected to the mono or stereo output evaluation board. The evaluation board provides a USB audio interface to stream audio data from the microphone with any audio recording and editing software.

View Product
