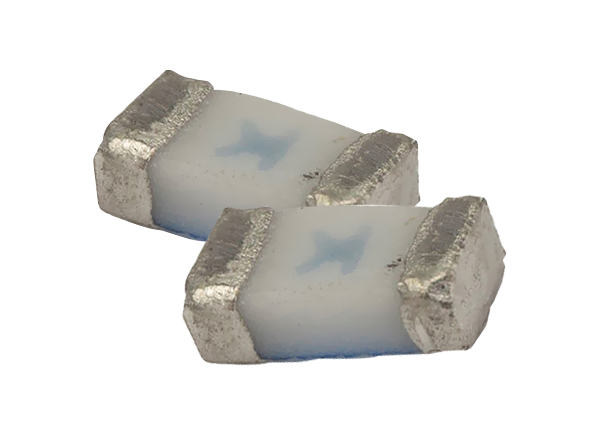

Bussmann / Eaton 0603HV Series Fast-Acting Chip Fuses
Bussmann / Eaton 0603HV Series Fast-Acting Chip Fuses feature a compact design that utilizes less board space. The fuses are designed for overcurrent protection of electronic circuits in I/O switch modules using RJ45 connectors and other space-constrained applications that require higher voltage ratings. The 0603HV Series provide short-circuit and overload protection in circuits up to 63VDC.
Features
- 0603 (1608 metric) compact design utilizes less board space
- Rapid interruption of excessive current
- Compatible with reflow and wave solder
- Rugged ceramic and glass construction
- Environmental integrity
- One-time positive disconnect
- High breaking capacity up to 63V
- Moisture sensitivity level (MSL): 1
Applications
- Secondary circuit protection
- I/O Switch modules
- Printers
- Laptop, notebook, netbook
- Tablets, e-readers
- Flat panel displays
- High definition television (HDTV)
- Gaming console systems
- Handheld/portable equipment
- Mobile device chargers
Associated Product
Bussmann / Eaton 0603FA Fast-Acting Chip Surface-Mount Fuses
Rapidly interrupts excessive current, offers excellent temperature and cycling characteristics.
