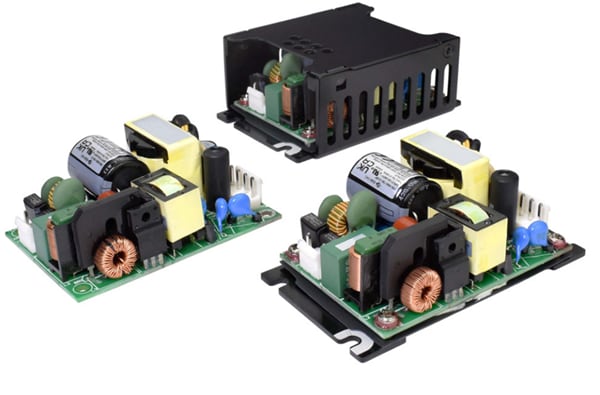

CUI Inc VMS-130 AC-DC Power Supplies offer a 130W power output rating with forced air cooling and active power factor correction (PFC). These power supplies feature a 2" x 3" footprint and are available with an open-frame, baseplate, or covered design. The VMS-130 series is medical grade and provides 12VDC to 48VDC output voltage options, 80VAC to 264VAC input voltage range, and up to 94% efficiency rating. CUI Inc VMS-130 AC-DC Power Supplies are ideal for medical designs that need to reduce standby and overall power consumption.
80VAC to 264VAC input voltage range
12VDC to 48VDC output voltage options
10.8A maximum output current
130W power output rating with forced air cooling
100W power output rating with natural convection
Up to 94% efficiency
2" x 3" footprint
-30°C to +70°C operating temperature range
IEC 60601-1 approved
IEC Class I and Class II safety approved
CUI Inc Medical Power Supply Solutions
Features internal/external power supplies and adapters with IEC 60601-1 safety certification.
