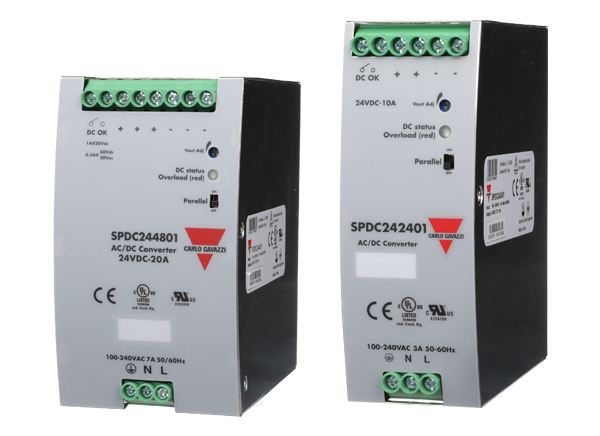

Carlo Gavazzi SPDC Power Supplies

Carlo Gavazzi SPDC Power Supplies are designed to achieve high energy efficiency of up to 94% and come with a built-in Power Factor Correction (PFC) circuit. This built-in PFC adjusts the power factor to 0.99 at 110V_AC and 0.95 at 230 V_AC. These power supplies are available in 120W, 240W, and 480W variants with a universal input voltage range of 85V_AC to 264V_AC and 130V_DC to 350V_DC. The SPDC power supplies feature parallel function, 150% power boost, over-voltage, overload, short circuit, and over-temperature protection. These DIN rail mount power supplies are ideal for applications that require high efficiency, high safety standards, and high PF corrections.

Features

High efficiency up to 93.8%
In-built active PFC with PF>0.95
Output options of 12V_DC, 24V_DC, or 48V_DC
Universal input voltage range of 85V_AC to 264V_{AC and} 130V_DC to 350V_DC
Bi-colour LED for status and DC-OK relay contact

Parallel function
150% power boost
Over Voltage Protection (OVP), Over Load Protection (OLP), Short Circuit Protection(SCP), and Over Temperature Protection (OTP)
Reliable power in very compact dimensions
