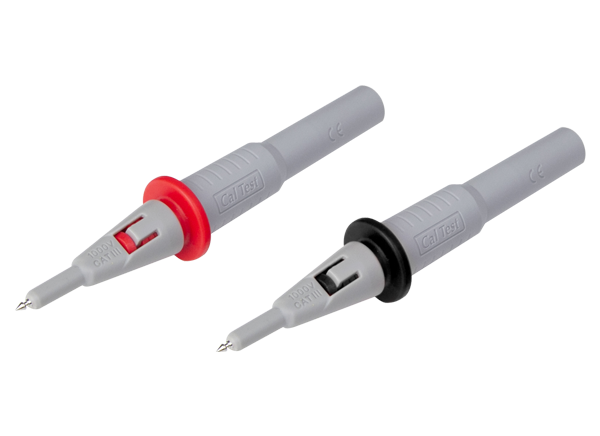

Cal Test Electronics CT4299 Fused Probe with Locking Safety Cap

Cal Test Electronics CT4299 Fused Probe with Locking Safety Cap easily connects to 4mm sheathed banana plug leads, which are in turn connected to a DMM or other equipment. The small, compact body of the Cal Test Electronics CT4299 Fused Probe features an internal fast-acting ceramic fuse that can cut power in microseconds during a transient overvoltage. This fast-acting fuse feature protects equipment and personnel working in high-energy environments. The closer the fuse is to the test point, the higher the level of protection.


  • Enhanced user safety for high-energy applications. Fast blow fuse will sever the connection in events such as meter failures, transient over-voltages, or arc-flash
  • Small, compact body
  • Rated to 1000V CATIII / 600V CAT IV per IEC/EN 61010-031
  • Fast acting, high quality 500mA ceramic fuse (maximum fuse current rating)
  • Tool-removable locking tip cover
  • Designed to work with 3900 Series DMM tip accessories
  • Easy fuse replacement
  • CE listed – LVD and RoHS 2 compliant


  • IEC Rating (probe body)
    • 1000V CAT III / 600V CAT IV with locking tip cover
    • 1000V CAT II without locking tip cover
  • 1000V fuse voltage
  • 500mA maximum fuse current rating
  • 50kA fuse interrupting rating
  • 0°C to +60°C operating temperature range
  • RoHS 2 (2011/65/EU) compliant
