Broadcom AFBR-S4N66C013 6mm NUV-HD Single SiPM

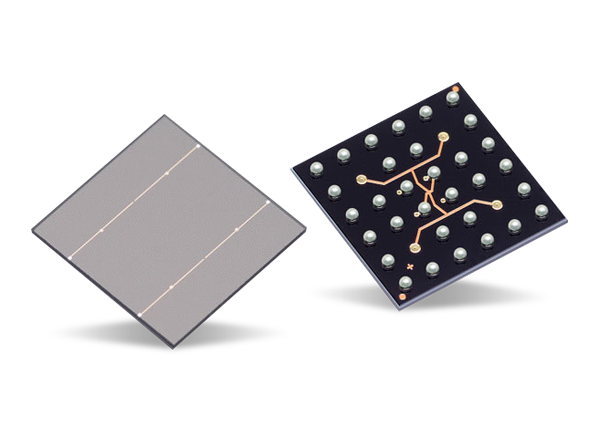

Broadcom AFBR-S4N66C013 6mm Single Silicon Photomultiplier (SiPM) is designed for ultra-sensitive precision measurements of single photons. This single SiPM offers a 6.14mm x 6.14mm active area and facilitates high packing density of the single chips by utilizing through-silicon-via (TSV) technology. Other features include high photon detection efficiency (PDE), high fill factors, excellent uniformity of breakdown voltage, and excellent uniformity of gain. Broadcom AFBR-S4N66C013 6mm Single SiPM comes with a glass protective layer that is highly transparent down to the UV wavelengths. This results in a broad response in the visible light spectrum with high sensitivity towards blue-UV and near-UV regions of the light spectrum. Typical applications include X-ray detection, gamma-ray detection, nuclear medicine, life sciences, flow cytometry, and astrophysics.
Features
- Single silicon photomultiplier
- More than 55% PDE at 420nm wavelength
- Excellent single photon time revolution (SPTR)
- Excellent uniformity in breakdown voltage and gain
- With TSV technology (4-side tiltable, with high fill factor)
- Highly transparent glass protection cover for high sensitivity in the UV spectral region
- RoHS and REACH compliant
Applications
- X-ray and gamma-ray detection
- Gamma-ray spectroscopy
- Safety and security
- Nuclear medicine
- Positron emission tomography
- Life sciences
- Flow cytometry
- Fluorescence - luminescence measurements
- Time-correlated single photon counting
- High energy physics
- Astrophysics
Specifications
- 6.14mm x 6.14mm active area
- 30µm x 30µm cell pitch
- 77% micro cell fill factor
- -40°C to +85°C operating temperature range
Block Diagram
