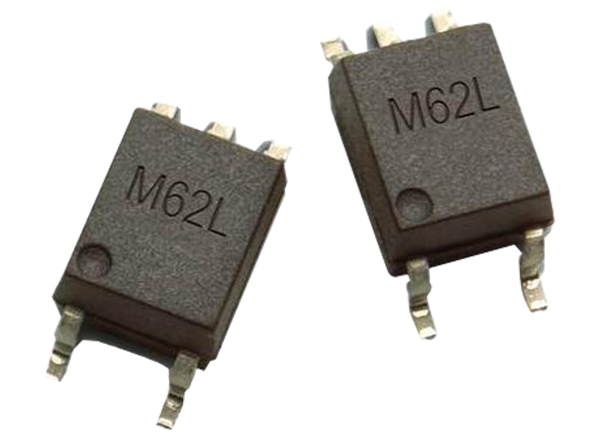

The ACPL-M62L Optocouplers support both 3.3V and 5V supply voltage with guaranteed AC and DC operational parameters from -40°C to +105°C. The output of the detector IC is an open-drain type. The internal Faraday shield provides a guaranteed common mode transient immunity specification of 20kV/μs. This unique design provides maximum AC and DC circuit isolation while achieving TTL/CMOS compatibility. These optocouplers are suitable for high speed logic interfacing, while consuming extremely low power.
