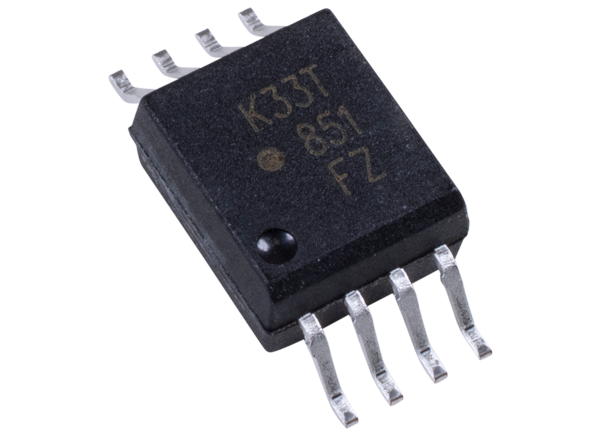

Broadcom ACPL-K33T Automotive Optocoupler

Broadcom ACPL-K33T automotive optocouplers offer 2.5A peak output current and are designed for driving IGBTs and SiC power MOSFETs used in AC-DC and DC-DC converters. ACPL-K33T optocouplers contain an AIGaAs LED optically coupled to an integrated circuit with a power output stage. It features fast propagation delay and tight timing skew. The ACPL-K33T automotive optocouplers feature Avago R²Coupler™ isolation which provides the reinforced insulation needed for critical automotive and industrial applications.


  • Qualified to AEC-Q100 Grade 1 Test Guidelines
  • Operating Temperature Range: -40°C to +125°C
  • Peak Output Current: 2.5A min.
  • Propagation Delay: 120ns max.
  • Dead Time Distortion Range: -40ns to +50ns
  • Wide Operating VCC Range: 15 to 30V
  • Low Supply Current Allowing Bootstrap Half-bridge Topology: ICC = 4.2mA max.
  • LED Current Input Drive with Hysteresis
  • High Common Mode Rejection (CMR):
    >50 kV/µs at VCM = 1500V
  • Compact SSO-8 Package
  • Regulatory Approvals:
    • UL1577, CSA (5000VRMS for 1min)
    • IEC/EN/DIN EN 60747-5-5 (VIORM = 1140VPEAK)


  • Automotive Powertrain DC-DC Converter
  • EV/PHEV Charger
  • AC and Brushless DC Motor Drives
