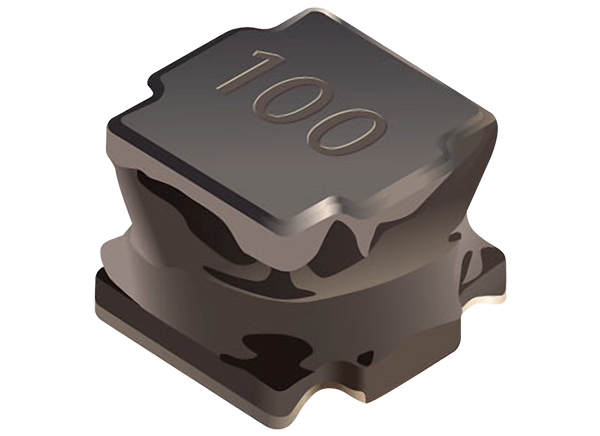

Bourns SRN6045HA Semi-Shielded Power Inductors offer a 550nH to 100µH inductance range, 6mΩ to 540mΩ resistance range, and up to 14.5A saturation current. These inductors are AEC-Q200 compliant and feature a high operating temperature range of -55°C to +150°C. SRN6045HA inductors have a magnetic epoxy coating to the perimeter of the inductor winding, which provides effective shielding and releases lower magnetic field radiation compared to non-shielded inductors. Bourns SRN6045HA Semi-Shielded Power Inductors are ideal for DC/DC converters and power supplies in consumer, industrial, and telecom electronics.
High operating temperature
550nH to 100µH inductance range
6mΩ to 540mΩ resistance range
Up to 14.5A saturation current
1.2A to 18A saturation current range
-55°C to +150°C operating temperature range
6mm x 6mm x 4.7mm dimensions
Bourns SRN Automotive Semi-Shielded Power Inductors
AEC-Q200 qualified for auto applications, provides effective magnetic shielding with low radiation.
