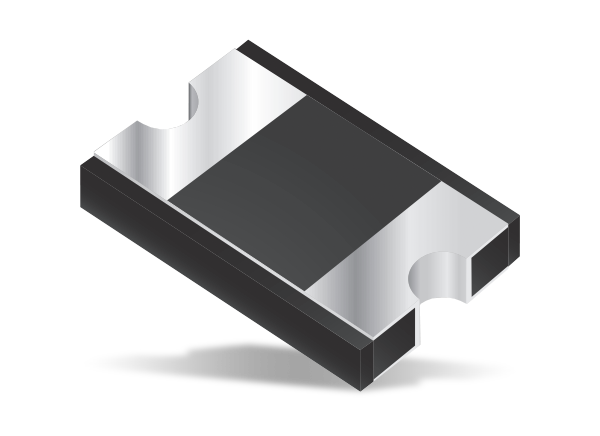

Bourns CD214A, CD214B, and CD214C Rectifier Chip Diodes are compact, low-profile SMD rectifier diodes featuring low forward voltage and high current capability. These modules have a 0.96mm or 1.1mm profile and are ideal for portable electronics, communications, computing, and video equipment applications. Bourns CD214A, CD214B, and CD214C Rectifier Chip Diodes are designed to be mounted directly onto an FR4 PCB and fit the SMA (DO-214AC), SMB (DO-214AA), or SMC (DO-214AB) footprint.
Compact surface-mount package, 0.96mm to 1.1mm low profile
Low 0.37~0.76V to 0.96V forward voltage
High 1A to 3A current capability
Low power loss, high efficiency
UL 94V-0 rated
Halogen free and RoHS compliant
Switch mode power supplies (SMPS)
Portable equipment batteries
Bourns Diodes Design Kits
Offer 20 to 40V repetitive peak reverse voltage range and a forward current of 1A.
