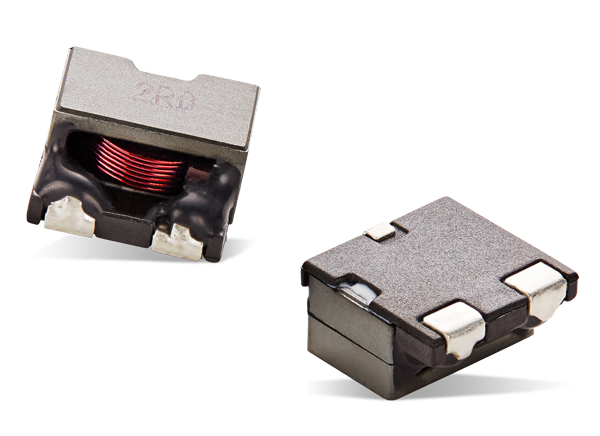

Signal Transformer / Bel SCIHP Shielded Inductors

Bel Signal Transformer SCIHP Shielded Inductors are high-frequency, high-current devices with low DCR/µH in a small package. These Bel Signal Transformer shielded inductors offer 0.22uH to 22uH inductance (at up to 5MHz) and 2.0A to 48A saturation current. SCIHP series offers a -40°C to +125°C operating temperature range and handles high transient current spikes without saturation. These 1.8mm to 6.7mm height inductors feature composite construction that produces extremely low buzz noise.


  • High efficiency
  • Shielded and unshielded options
  • 0.22uH to 22uH inductance (at up to 5MHz)
  • 20% and 30% tolerance options
  • 2A to 21A maximum DC current range
  • 2.0A to 48A saturation current range
  • 3.7mΩ to 35Ω maximum DC resistance range
  • Composite core
  • 1.2mm to 6.7mm height range
  • RoHS compliant


  • Medical
  • Networking
  • Telecom/datacom
  • Consumer
  • Industrial
  • Power modules
