Signal Transformer / Bel HPI High-Power International Transformers

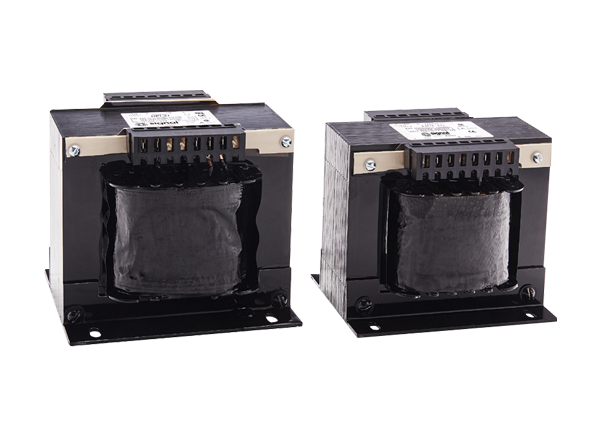

Bel Signal Transformer HPI High-Power International Transformers are constructed on a concentric platform and provide reinforced insulation while maintaining superior volumetric efficiency. Designers can easily modify Bel Signal Transformer HPI High-Power International Transformers for their exact application. The series is available in six power ratings: 1250, 1500, 1750, 2000, 2750, and 3500VA.
Features
- UL 94-V0 flammability rating
- Constructed to meet UL 60601-1
- UL, CSA, VDE, and TUV agency certified
- Leakage current @ <50mA
- Touch safe terminals (IP20 type)
- Certifications
- UL recognized to UL 506/UL 5085-2, File #E63829 meets UL60601-1 construction
- CSA certified to C22.2 #66.1, File #221070
- UL Insulation Systems 1446, E66312
- IEC/EN Standards IEC/EN 61558, VDE 0550, License #2994
- TUV Rheinland Certified IEC/EN 60950, License #R9373110.2
- CE Compliance VDE Declaration of Conformity 73/23/EEC
Specifications
- 1250, 1500, 1750, 2000, 2750, and 3500VA power ratings
- 4.0kV dielectric strength
- 100V, 115V, 215V, and 230V, 50Hz/60Hz available input voltage
- 115V/230V output voltage
Additional Resources

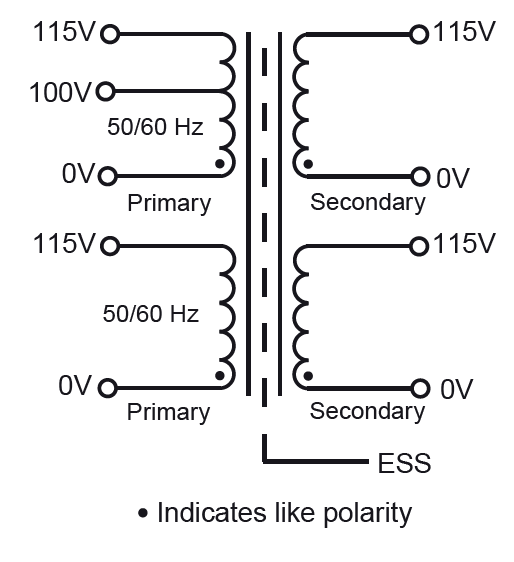

Schematic
Videos
