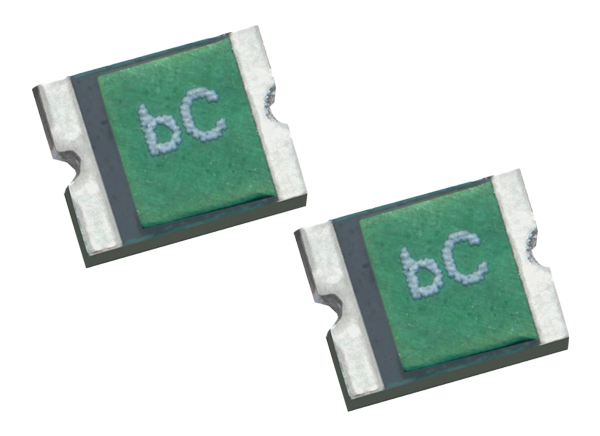

Bel Fuse 0ZT High-Temperature PTC Resettable Fuses meet AEC-Q200 requirements and offer an operating temperature range of -40°C to +125°C. The surface-mount fuses feature a faster time to trip than standard SMD devices and a maximum voltage up to 30V. Available chip sizes include 0805, 1206, 1210, 1812, and 2920. Bel Fuse 0ZT resettable fuses are recognized by the UL, certified by TUV, and fully compliant with EU directive 2011/65/EU and amending directive 2015/863. These fuses are designed for automotive use, especially resettable applications with higher temperature requirements.
Faster time to trip than standard SMD devices
-40°C to +125°C operating temperature range
Up to 30V maximum voltage
0805, 1206, 1210, 1812, and 2920 chip sizes
UL recognized (E305051) – cURus
TUV certified (R50102117)
Full compliance with EU Directive 2011/65/EU and amending directive 2015/863
Resettable with higher temperature requirements
Bel Fuse Fusíveis Automotivos
Para proteção de circuitos automotivos, seja na cabine ou sob o capô, em conformidade com AEC-Q200.
