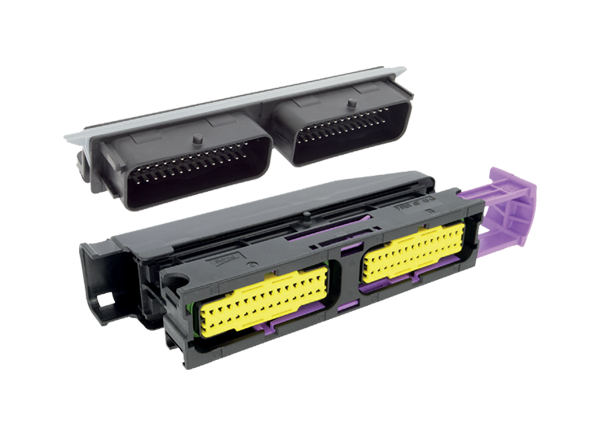

Aptiv Sicma Interconnect Sealed Headers provide a wire-to-electronic printed circuit board (PCB) solution for electronic control units (ECUs). These headers create sealed connections from the harness wiring to electronic equipment. They feature a market standard footprint and have a sliding lever that can be installed in the right or left position. Aptiv Sicma Interconnect Sealed Headers are offered in 6, 24, 56, or 90 cavity count (ways) in 1, 2, or 3 rows with 1.5mm, 2.8mm, or mixed cavity configurations. Typical applications include engine management with gas converters as well as automatic gearbox management.
Market standard footprint interface-to-device headers
Sliding lever can be installed in the right or left position
Wire-to-electronic PCB solution for ECUs
Sealed connection from harness wiring to electronic equipment
Engine management with gas converters
Automatic gearbox management
6, 24, 56, or 90 cavity count (ways)
1, 2, or 3 rows
1.5mm, 2.8mm, or mixed cavity configurations
25G (6 or 24 way) and 3G (56 or 90 way) vibration ratings
IP68/IPX9K sealing protection
-40°C to +125°C operating temperature range
