Anaren 1101 / 2500 AIR Modules

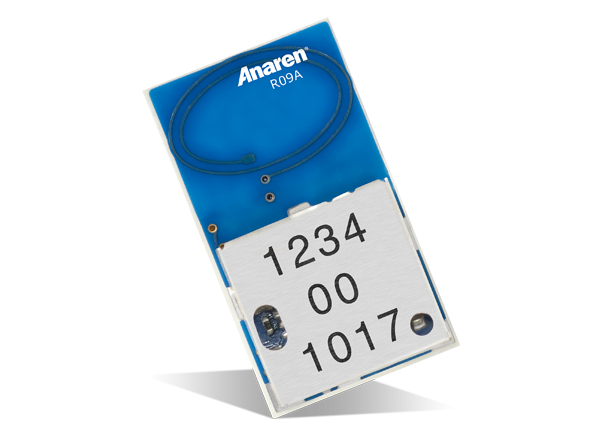

Anaren Integrated Radio (AIR) 1101 / 2500 AIR Modules provide a simple way to bring wireless capability to products when designing a wireless version of a currently wired product or developing a wireless product from scratch. These modules with an internal antenna incorporate a Texas Instruments chip into a 9mm x 12mm x 2.5mm package. Anaren Integrated Radio (AIR) 1101 / 2500 AIR Modules feature digital RSSI output and an industry-standard U.FL connector. They have an operating temperature range of -40°C to +85°C. These modules offer easy integration and implementation into applications.


  • Digital RSSI output
  • 9mm x 12mm x 2.5mm package
  • Industry-standard U.FL connector
  • LGA footprint
  • RoHS compliant
  • -40°C to +85°C operating temperature range
  • Impedance-controlled, multi-layer PCB
  • 1.8VDC to 3.6VDC
  • Efficient SPI interface; all registers can be programmed with one "burst" transfer
  • Available in tape and reel and matrix tray
  • No RF engineering experience necessary
  • Minimal real estate required
  • Easily implemented on a two-layer PCB
  • No additional harmonic filtering required
  • 100% RF tested in production
  • Common footprint for product family
  • No additional DC decoupling required
  • Integrated analog temperature sensor
  • Excellent receiver selectivity and blocking performance
  • Suitable for frequency hopping systems
  • Impedance-matched balun for optimized efficiency
  • Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility with existing radio communication protocols
