Analog Devices Inc. SCP-LT3045-1-EVALZ Evaluation Board

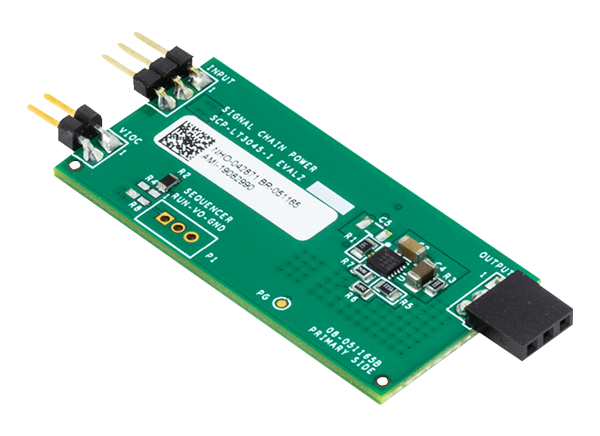

Analog Devices Inc. SCP-LT3045-1-EVALZ Evaluation Board is designed to evaluate LT3045-1 IC, a high-performance low dropout linear regulator. This board is a 20V 500mA Low Dropout (LDO) regulator that provides low noise operation in noise-sensitive circuits. The SCP-LT3045-1-EVALZ board is configured for a wide output range and offers extremely quiet operation with high PSR. This board easily plugs into other SCP boards to form a complete signal chain power system that enables a fast evaluation of low-power signal chains.
Features
- Low noise operation in noise-sensitive circuits
- 20V maximum input voltage (VIN(MAX))
- 19.5V maximum output voltage (VOUT(MAX))
- 500mA maximum output current (IOUT(MAX))
Supported Device
Analog Devices Inc. LT304x PSRR Linear Regulators
Regulators with ultralow noise and ultrahigh PSRR for powering noise sensitive applications.
Related Development Tools
Analog Devices Inc. Signal Chain Power Hardware Evaluation Platform
Enables users to quickly develop, prototype, and evaluate complete power solutions.
Schematic Diagram
