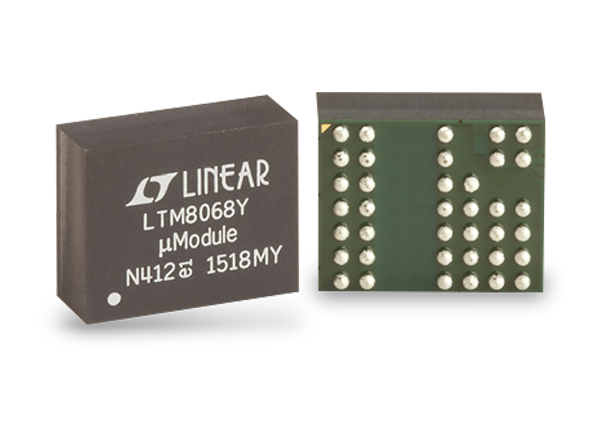

Analog Devices Inc. LTM8067 & LTM8068 μModule® DC/DC Converters

Analog Devices Inc. LTM8067 and LTM8068 μModule® DC/DC Converters are 2kV_AC isolated flyback power modules. Included in the package are the switching controller, power switches, transformer, LDO, and all support components. These Analog Devices converters operate over a 2.8V to 40V input voltage range and support a 2.5V to 18V output voltage range, set by a single resistor.

Features

2kV_AC isolated μModule converter
UL60950 recognized file 464570
2.8V to 40V input voltage range
Current mode control

User-configurable undervoltage lockout
Low profile (9mm × 11.25mm × 4.92mm)
BGA package

Applications

Isolated IGBT gate drives
Industrial sensors

Industrial switches
Test and measurement equipment
