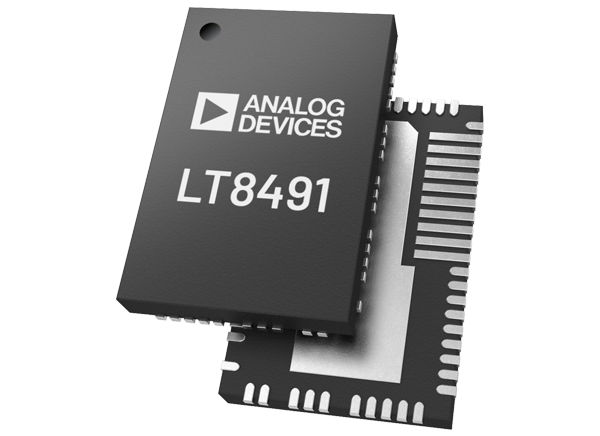

Analog Devices Inc. LT8491 Buck-Boost Battery Charge Controller
Analog Devices Inc. LT8491 Buck-Boost Battery Charge Controller implements a constant-current constant voltage (CCCV) charging profile used for most battery types. This includes sealed lead-acid (SLA), flooded, gel, and lithium-ion. The device operates from input voltages above, below, or equal to the output voltage and is powered by a solar panel or DC power supply.
Features
- VIN Range: 6V to 80V
- VBAT Range: 1.3V to 80V
- Single Inductor Allows VIN Above, Below, or Equal to VBAT
- Automatic MPPT for Solar Powered Charging
- Automatic Temperature Compensation
- I2C Telemetry and Configuration
- Internal EEPROM for Configuration Storage
- Operation from Solar Panel or DC Supply
- Four Integrated Feedback Loops
- Synchronizable Fixed Frequency: 100kHz to 400kHz
- 64-Lead (7mm x 11mm x 0.75mm) QFN Package
Applications
- Solar-Powered Battery Chargers
- Multiple Types of Lead-Acid Battery Charging
- Li-Ion Battery Chargers
- Battery-Equipped Industrial or Portable Military Equipment
Videos
Typical Application
Associated Demonstration Board
Analog Devices Inc. LT8491 Demo Board DC2703A
Features LT8491 a high voltage buck-boost battery controller and DC2703A a USB-to-I2C controller.
