Analog Devices Inc. EVAL-LT3960-AZ Demonstration Circuit

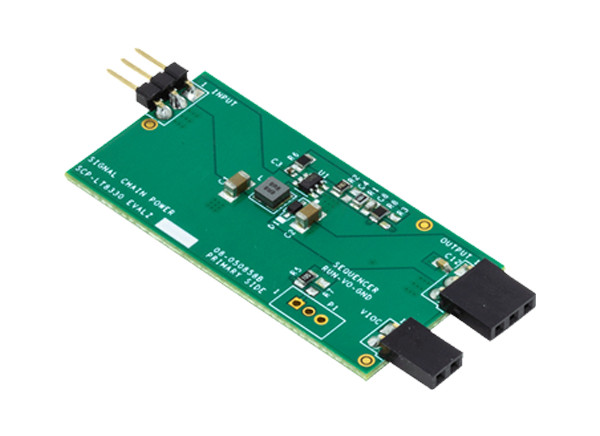

Analog Devices Inc. EVAL-LT3960-AZ Demonstration Circuit features the LT8330 boost/SEPIC/inverting converter with a 1A, 60V switch. The demo circuit is specifically a boost converter with an operating input voltage range from 10V to 36V and an output voltage of 48V. With a 12V input, the maximum output current is 135mA.
Features
- Features the LT8330 boost/SEPIC/inverting converter with a 1A, 60V switch
- Specifically a boost converter with an operating input voltage range from 10V to 36V and an output voltage of 48V
- With a 12V input, the maximum output current is 135mA
Supported Devices
Analog Devices Inc. LT833x Converters
Boost/SEPIC/flyback/inverting converters with a quiescent current as low as 6μA.
Related Development Tools
Analog Devices Inc. Signal Chain Power Hardware Evaluation Platform
Enables users to quickly develop, prototype, and evaluate complete power solutions.
