Analog Devices Inc. EVAL-HSAMP-2 Universal Evaluation Boards

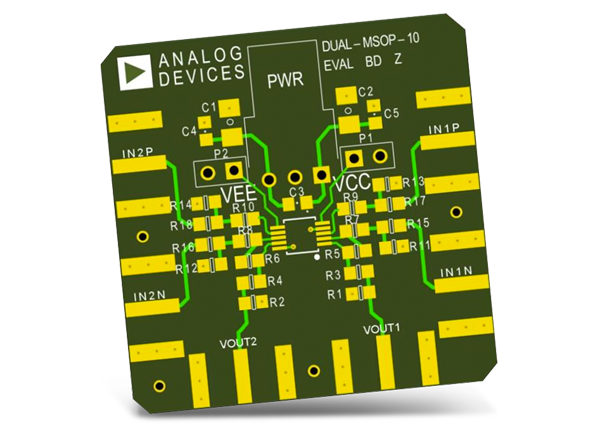

Analog Devices EVAL-HSAMP-2 Universal Evaluation Boards are designed for dual, high-speed operational amplifiers offered in specified packages. Designed as RoHS compliant bare boards, the EVAL-HSAMP-2 eval boards enable designers to quickly prototype a variety of amplifier circuits. These layered printed circuit boards (PCB) accept SMA edge-mounted connectors on the inputs and outputs for efficient connection to test equipment or other circuitry. The ground plane and component placement minimize parasitic inductances and capacitances.

The EVAL-HSAMP-2 Universal Evaluation Boards are available in 8-lead MSOP, LFCSP, SOIC packages, and 10-lead MSOP and LFCSP packages.


  • Enables quick breadboarding/prototyping
  • User-defined circuit configuration
  • Edge mounted SMA connector provisions
  • Easy connection to test equipment and other circuits
  • RoHS compliant
