Analog Devices Inc. EVAL-ADXL356BZ Evaluation Board

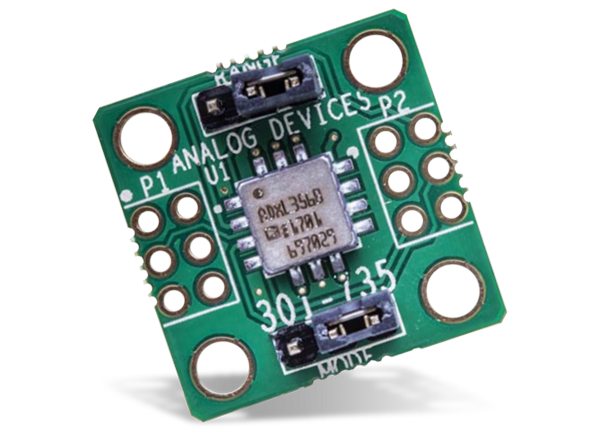

Analog Devices Inc. EVAL-ADXL356BZ Evaluation Board is designed for a quick evaluation of the performance of the ADXL356. The ADXL356 is a low noise, low power, 3-axis, MEMS accelerometer. The EVAL-ADXL356BZ offers a selectable ±10g and ±20g full-scale ranges.
The EVAL-ADXL356BZ Evaluation Board is ideal for evaluating the ADXL356 in an existing system because the stiffness and the small size of the evaluation board minimizes the effect on both the system and acceleration measurements.
Features
- 2 sets of spaced vias for populating 6-pin headers
- Easily attaches to prototyping board or PCB
- Small size and board stiffness minimizes impact on the user system and acceleration measurements
Required Equipment
- External host processor
Associated Products
Analog Devices Inc. ADXL35x Accelerometers
Performs vibration measurement for the early detection of structural defects via WSNs.
Schematic
