Analog Devices Inc. EVAL-ADMV8432 Evaluation Board for ADMV8432

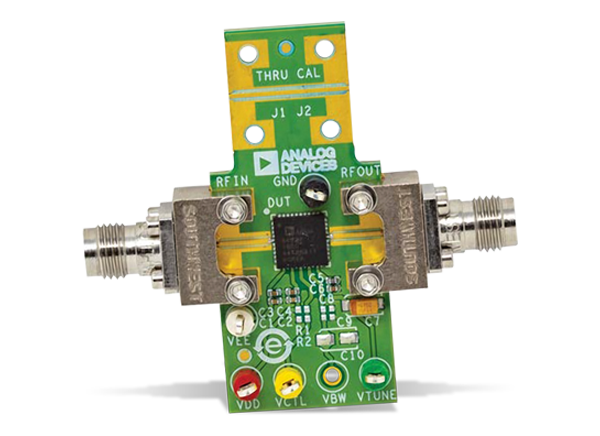

Analog Devices Inc. EVAL-ADMV8432 Evaluation Board for ADMV8432 is used in the evaluation of the ADMV8432 bandpass filter with selectable pass band frequency. The ADMV8432-EVALZ evaluation board has end launch 2.4mm connectors on the input and output for an efficient connection to test equipment and other circuitry. Optimized power and ground planes ensure low noise and high speed operation. Component placement and power supply bypassing are optimized for maximum circuit flexibility and performance.
Features
- Enables quick breadboarding and prototyping
- User defined circuit configuration
- End launch 2.4 mm connector provisions
- Easy connection to test equipment and other circuits
