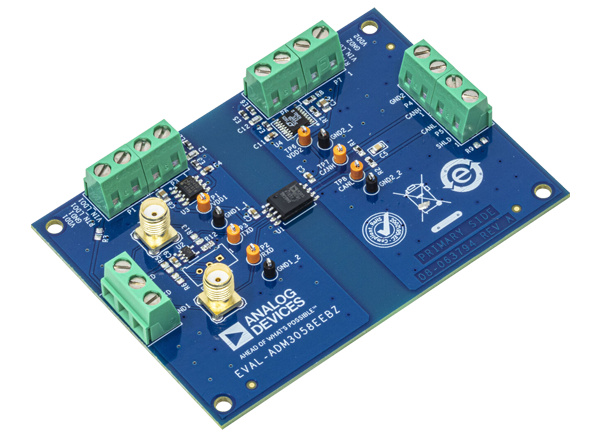

Analog Devices Inc. EVAL-ADM3058EEBZ Evaluation Board
Analog Devices Inc. EVAL-ADM3058EEBZ Evaluation Board evaluates ADM3058E isolated signal and power transceivers for CAN or CAN FD networks. This evaluation board allows all the input and output functions to work without the need for external components. The EVAL-ADM3058EEBZ board operates at -40°C to 125°C industrial temperature range. This evaluation board is populated with the 8-lead standard small outline package, increased creepage (SOIC_IC), and >8mm creepage. Typical applications include industrial automation, process control, building control, transport, and infrastructure.
Features
- ADM3058E 12Mbps isolated CAN FD transceivers
- 40°C to 125°C industrial operating temperature range
- 2-layer PCB with low radiated emissions passes EN 55022 Class B
- 6V to 9V LDO regulator supply voltage range
- SMA connectors for TXD pin and RXD pin signals
Applications
- CANOpen, DeviceNet, and other CAN bus implementations
- Industrial automation
- Process control and building control
- Transport and infrastructure
Kit Contents
- EVAL-ADM3058EEBZ evaluation board
- ADM3058EBRIZ
- ADP7104
- LTC6900
Evaluation Board Schematic
Associated Product
Analog Devices Inc. Transceptor Isolado de Sinal ADM3058E
Camada física de rede de área de controlador (Controller Area Network, CAN) de 5,7kvrms com transceptores de alto desempenho.
