Analog Devices Inc. EVAL-AD7124-8-PMDZ Evaluation Kit

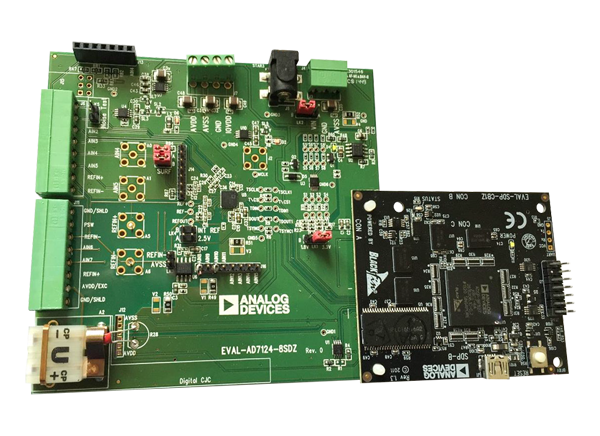

Analog Devices Inc. EVAL-AD7124-8-PMDZ Evaluation Kit is designed to evaluate the low-power, low-noise 24-bit Σ-Δ AD7124-8 Analog-to-Digital Converter (ADC) for all its features and functionalities. The kit includes the EVAL-AD7124-8SDZ evaluation board and AD7124-8 EVAL+ software (loaded into CD). The evaluation board connects to the USB port of the PC via the EVAL-SDP-CB1Z motherboard. A 7V to 9V external supply is regulated to 3.3V to supply the AD7124-8 ADC and support all necessary components. The AD7124-8 EVAL+ software fully configures the AD7124-8 device register functionality and provides dc time-domain analysis. This analysis can be obtained in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.
