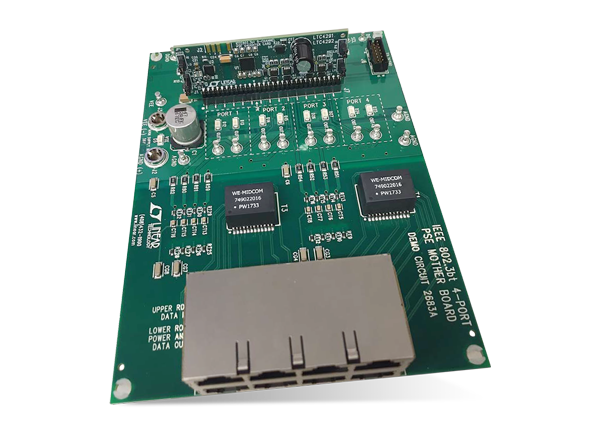

Analog Devices Inc. LTC4291/LTC4292 Demo Board DC2685B

Analog Devices Inc. LTC4291/LTC4292 Demo Board DC2685B is a 4-port Power Sourcing Equipment (PSE) that consists of DC2684A-B (daughter card) and DC2683A (motherboard). This Demo Board is used for the evaluation of LTC4291-1/LTC4292 PSE chipset. The DC2685B Demo Board can connect to and power up to four IEEE802.3af, IEEE802.3at, or IEEE802.3bt powered devices using a single power supply.
