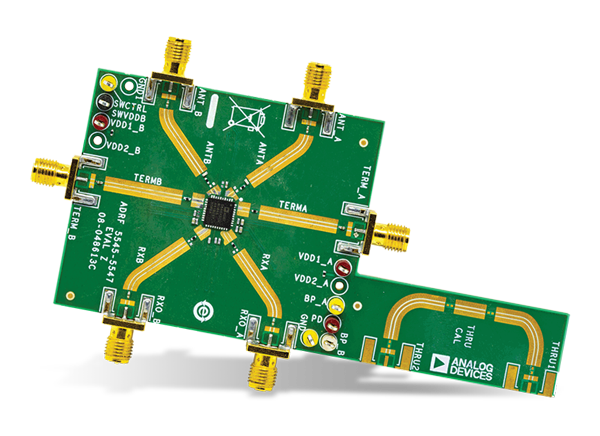

Analog Devices Inc. ADRF5545A-EVALZ Evaluation Board

Analog Devices ADRF5545A-EVALZ Evaluation Board is designed to help evaluate the features and performance of the ADRF5545A. The ADRF5545A is a dual-channel integrated radio frequency (RF) front end ideally suited for time-division duplexing (TDD) wireless infrastructure applications. The ADRF5545A is a multichip device that consists of a high power switch and a dual-stage low noise amplifier on each channel.


  • Full-featured evaluation board for the ADRF5545A
  • Easy connection to test equipment
  • Matching network for 2.6GHz and 3.6GHz
  • Thru line for calibration

Required Equipment

  • DC power supply
  • Signal generator
  • Spectrum analyzer
  • Network analyzer

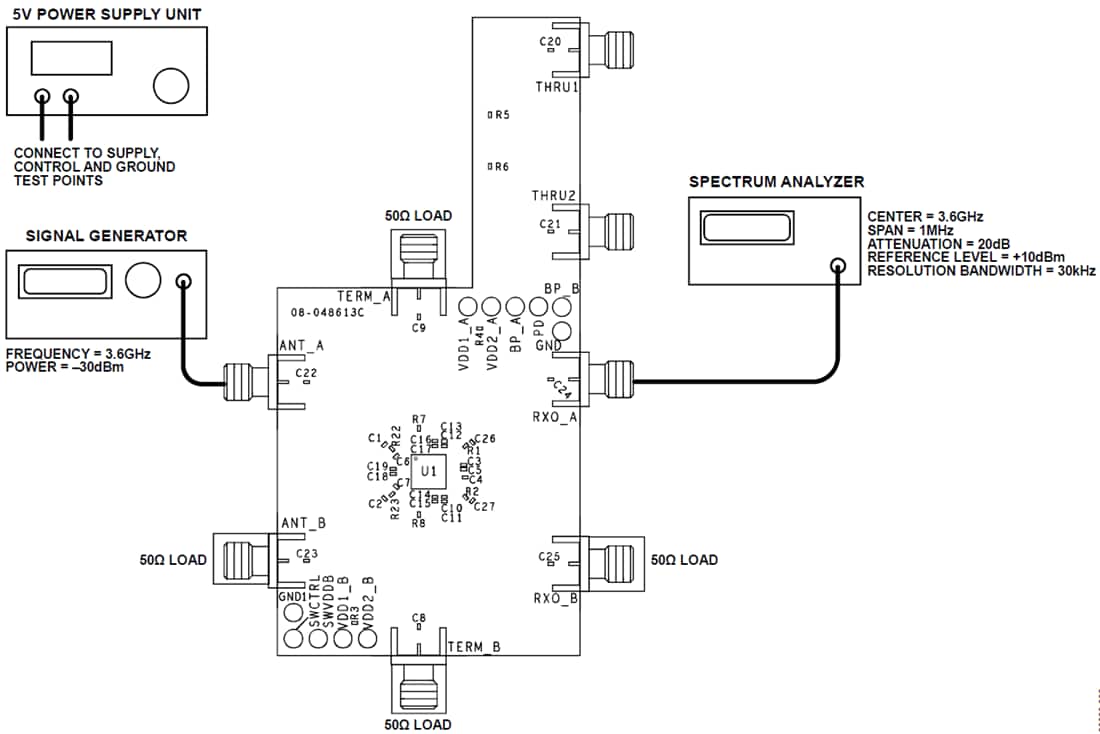

Test Setup
