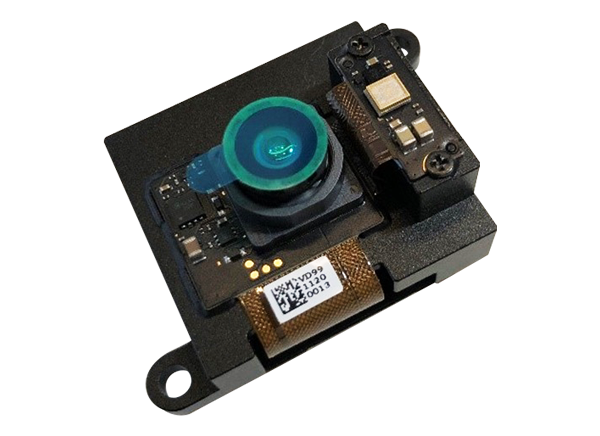

Analog Devices Inc. AD-FXTOF1-EBZ 3D ToF Development Kit

Analog Devices Inc. AD-FXTOF1-EBZ 3D ToF Development Kit is designed for depth sensing and is fully compatible with the existing ADI 3DTOF Open Source SDK and prototyping software platform. The AD-FXTOF1-EBZ 3D ToF Development Kit utilizes current ADI algorithms for use cases around people detection, occupancy, and activity sensing, objects detection and classification, autonomous and service robots, volumetric measurement for logistics and industrial applications and many other machine vision applications.

The ADI AD-FXTOF1-EBZ 3D ToF Development Kit contains an interposer board to adapt the 25-pin interface of the ToF module to a 15-pin interface compatible with popular development systems such as the Raspberry PI, Nvidia Jetson Nano, or Nvidia Xavier NX.

Features

Depth and IR images @ 640 × 480 pixels (VGA), 30fps output
Distance sensing range up to 3m
Measurement accuracy of typical <2% of the measured distance
Connectivity of 2 lanes MIPI CSI-2, 25 pin flex cable or 15 pin flex cable via an interposer board
Supply of 5V @ 2000mA

Optics of 940nm VCSEL, FOV: 87°x67°; AR coated lens with 940 BPF, FoV: 87°×67°
-20°C to 75°C Operating temperature
Fully tested for shock & vibe, temperature & humidity, drop
Certified Eye safe in accordance with IEC 60825-1:2014 & 2007
Compatible with Analog Devices open source 3D ToF SDK

Kit Contents

ToF module
Interposer board
25 pins flex cable
15 pins flex cable

Screws and standoffs to attach the interposer board to the ToF module
USB cable to supply 5V to the system

Required Equipment

5V @ 2V power supply with USB type A connector
Compatible processor board

System Assembly

Once the ToF module and the interposer board are assembled together using the 25 pins flex cable and the screws and standoffs provided in the box the system can be connected to any development platform which has a compatible 15 pin flex cable interface such as the Raspberry PI, Nvidia Jetson Nano or the Nvidia Xavier NX
The system must be powered from an external 5V, 2A power supply using the USB cable provided in the box
