ams OSRAM M3-L Linear Actuator Development Kit

ams OSRAM M3-L Linear Actuator Development Kit enables OEMs to rapidly integrate high-resolution linear micro motion into OEM instruments. The M3-L Linear Actuator Development Kit includes one M3-L module, USB control adapter with SPI output, and New Scale Pathway™ development software. The kit helps designers define system specifications for subsequent development of custom micro motion modules with New Scale Technologies. Using the ams OSRAM M3-L Linear Actuator Development Kit, designers can create custom M3-L systems to push and/or pull loads, and meet specific requirements for travel range, size, force, special environmental conditions, and more.

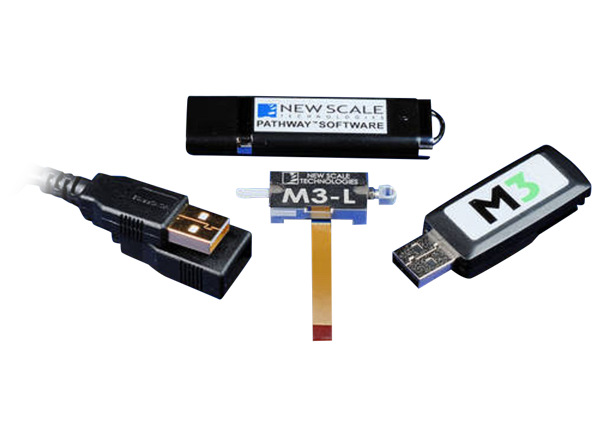

Kit Contents

  • One M3-L module
  • USB control adapter with SPI output
  • New Scale Pathway™ development software

Specifications

  • 6mm travel range
  • 27.5 x 13.2 x 7.5mm maximum housing dimensions
  • Speed: 5mm/s @ 0.15N load (typical)
  • 0.5μm resolution
  • ±25μm linear accuracy
  • <0.20 newtons maximum load (Push-pull stall force with ±1 degree axial alignment)
  • 5g maximum recommended mass
  • 3.1 - 3.6VDC input voltage:
  • <0.5W (5mm/s at 0.15 Newtons) <0.2W quiescent nput power
  • I2C or SPI digital interface
  • 4.5g weight (without tip)

M3-L Diagram

ams OSRAM M3-L Linear Actuator Development Kit
