ams OSRAM AS5715 Reference Board

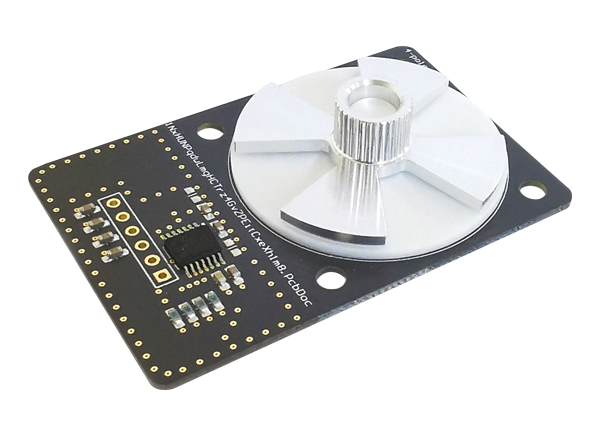

ams OSRAM AS5715 Reference Board is designed for the quick evaluation of the AS5715 inductive motor control position sensor. This reference board is fully assembled and includes the target, spacer, and connector (plug-strip). The connector is populated with a 6-pin plug strip and is required for the power supply as well as output and I2C interfaces.
Kit Contents
- Reference board
- Spacer
- Target
- Connector
Kit Content List
Board Setup
Schematic
Associated Products
ams OSRAM AS5715R Inductive Motor Control Position Sensor
Designed to detect the electrical position within one pole-pair of a rotating shaft.
ams OSRAM AS5715R Evaluation Programmer Board
Coupled with AS5715-TS_EK_AB adapter board for the evaluation of AS5715R inductive position sensor.
