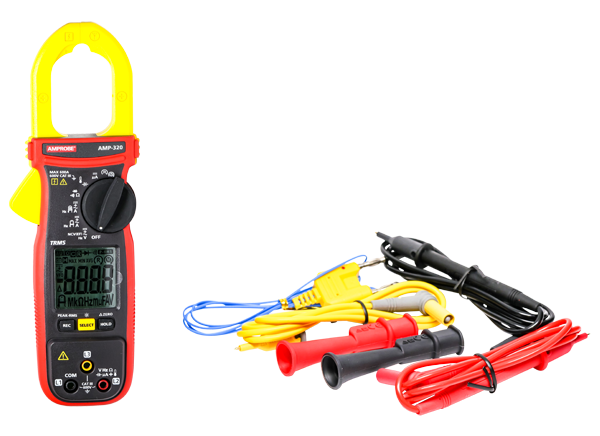

Amprobe AMP 200 & 300 TRMS Clamp Multimeters

Amprobe AMP 200 and 300 TRMS Clamp Multimeters offer a complete range of measuring functions for modern electrical and industrial environments.  All models feature True-RMS sensing, low pass filters, and fast response processors for quick, error-free measurements.  The Amp-Tip function allows for precise measurement of current down to the tenth of an amp, enabling accurate current measurement of both large and small diameter wires.

Features

  • True RMS
  • Low pass filter
  • Amp-Tip functions
  • Non-contact voltage detection (NCV)
  • Audible continuity and diode test
  • Data hold, relative zero
  • Large LCD backlit display
  • Safety Rated:
    • CAT III 600V (AMP-200 Series, AMP-310, AMP-320
    • CAT IV 600V, CAT III 1000V (AMP-330)

Applications

  • Current, voltage, and frequency on electrical systems
  • Start and run motor capacitors
  • Electrical connections
  • Variable frequency drives

Specifications

  • Frequency: 5.00 to 999.9 Hz
  • Resistance: Up to 60.00 kΩ
  • Capacitance: Up to 2500µF
  • Voltage:
    • Up to 600V AC/DC (AMP-200 Series, AMP-310 & 320)
    • Up to 1000V AC/DC (AMP-330)
  • AC current:
    • Up to 600A (AMP-200 Series, AMP-310 & 320)
    • Up to 1000A (AMP-330)
  • DC current:
    • Up to 600A (AMP-220 only, AMP-320 only)
    • Up to 1000A (AMP-330 only)

Datasheets
