Amphenol Sine Systems A Series™ Connectors

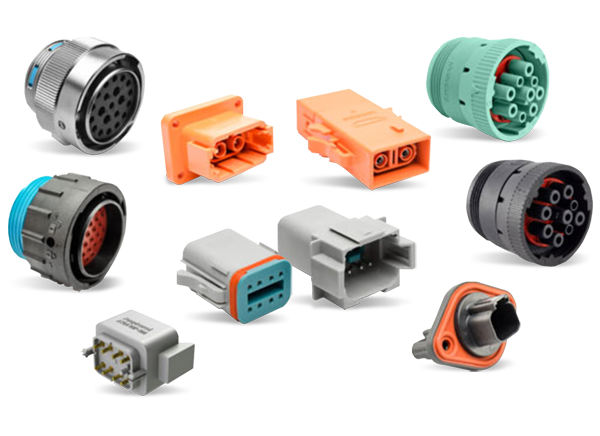

Amphenol Sine Systems A Series™ Family of sealed heavy-duty, multi-pin plastic and metal connectors feature a wide range of products designed to serve many industries. The connectors are developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternative energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep designers connected. IP ratings vary depending on the series.
Featured A Series Connectors
Amphenol Sine Systems AT Series 15-Position Thermoplastic Connectors
Available in 13 x size 16 contacts or 2 x size 12 contacts configuration.
Amphenol Sine Systems AT Series™ 18-Position Thermoplastic Connectors
18 x size 16 contacts configuration, IP68/IP69K (mated), compatible with existing standard products.
Amphenol Sine Systems AT Series™ Connectors
IP68 and IP69K (mated), high-performance, thermoplastic solution with superior environmental seals.
Amphenol Sine Systems AT Series™ LED Connectors
Allows quick, visible verification the component is receiving power, reducing costly diagnosis.
Amphenol Sine Systems AT Series™ SR01 & SR02 Connectors
High-performance, thermoplastic solution with wire cavities to protect each individual wire seal.
Amphenol Sine Systems ARC Series™ Connectors
13A maximum current, 250V AC/DC voltage, & IP68 protection or IP69K when in mated condition.
Amphenol Sine Systems DuraLok™ Dual-Locking Connectors
High-density, heavy-duty, IP67 rated (mated), environmentally sealed connector series.
Amphenol Sine Systems HYPERBUS™ Family of Receptacle Connectors
For a variety of interconnect applications where a common "bussed" electrical pathway is required.
Amphenol Sine Systems BoardLock™ Connectors
Flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility.
Amphenol Sine Systems AT Series™ Bulkhead Receptacles
Combines robust, easy-to-mount IP67 sealed housing with the benefits of AT Series (13A) connectors.
Amphenol Sine Systems StructurePlus™ AT OMC Series Connectors
Designed for cable assembly operations requiring custom molding or shrink tube requirements
Amphenol Sine Systems PanelMate™ AT/ATP Connectors
Combines flange mounting options with the proven reliability of the AT/ATP Series.
Amphenol Sine Systems ATP Series™ Connectors
Features an added finger grip for improved ergonomics, IP68 rated, high performance.
Amphenol Sine Systems ATM Series™ 2-Wire CAN Connectors
Provides low amperage power splits and is offered in accordance with SAE J1939/15 requirements.
Amphenol Sine Systems ATM Series™ Automotive Connectors
Designed for smaller AWG applications, while maintaining the strengths of the AT Series™ line.
Amphenol Sine Systems ATV Series™ Heavy Duty Connectors
Sealed flange design and built-in contact sealing to eliminate individual wire-sealing grommets.
Amphenol Sine Systems AHD Series™ J1939 On-Vehicle Data Connectors
Intermateable to industry-standard six- and nine-pin connectors.
Amphenol Sine Systems AHD J1939 On-Vehicle Data Connectors
Industry-standard connectors designed for vehicle diagnostic and data communication.
Amphenol Sine Systems Conectores ATHP MagnaMate™
Conectores de classificação IP67 que suportam condições extremas e incluem tecnologia de contato RADSOK.
Amphenol Sine Systems ATHD Single-Pole Heavy Duty Power Connectors
IP67/69K rated, environmentally sealed connection system & viable solution in harsh environments.
Amphenol Sine Systems AT Series™ Integrated Resistors & Diodes
IP67 moisture resistance and 100-cycle mating durability, ideal for heavy-duty applications.
Amphenol Sine Systems AT Protective Backshell Boots
Provides a protective backshell covering for harsh environments and industrial applications.
Amphenol Sine Systems SpeedSplice™ A Series™ Terminals
A field-serviceable and splicing solution for heavy equipment, automotive, and other applications.
Amphenol Sine Systems DuraMate™ Family
Plastic (AHDP) or metal (AHDM) circular connectors, environmentally sealed, multi-pin, heavy duty.
Amphenol Sine Systems A Series™ Contacts
Readily available in a wide variety of material & plating combinations as well as contact types.
Amphenol Sine Systems HydroNet™ Multi-Hub Adapters & Cables
Flexible and increased reliability when connecting multiple devices to NMEA 2000 networks.
Amphenol Sine Systems Armor IPX™ Circuit Board Enclosures
Protects PCBs and electronic control modules in harsh environments and off-road applications.
Tools & Accessories
Amphenol Sine Systems A Series™ Clips
Provides optional method for mounting AT, ATM, ATP, & ATHD Series receptacles to plug connectors.
Amphenol Sine Systems AT Series™ End Caps
Thermoplastic, standard or reduced diameter sealing options, IP sealing.
Amphenol Sine Systems AHD & AT/ATP Series™ Contacts
Full range of contacts compatible with AHD & AT/ATP Series Connectors & industry-standard products.
Amphenol Sine Systems AT/ATM/ATP Service Kits
Designed for use with AT Series™, ATM Series™, and ATP Series™ connectors.
Amphenol Sine Systems A Series™ Crimp Tools
Available in either a kit or as individual crimping tools in size 20, size 16, and size 12.
AHD and AT / ATP Series Accessories - Includes a full range of plugs, receptacles, wedges, seals, and tools.
