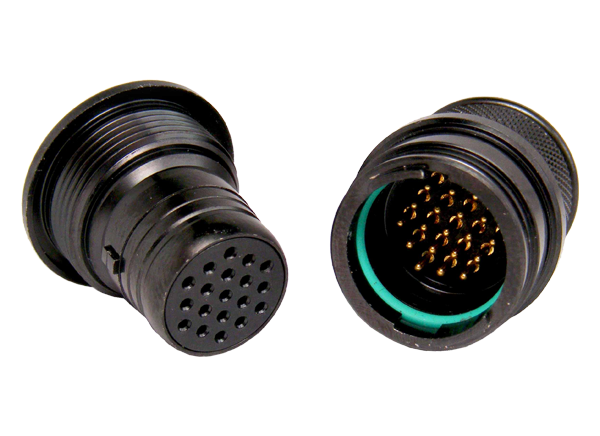

Amphenol LTD Terrapin Miniature Push-Pull Circular Connectors

Amphenol LTD Terrapin Miniature Circular Push-Pull Connectors are designed for communications in harsh environments. Featuring a rugged shell design, Terrapin Miniature Push-Pull Circular Connectors deliver superior EMC performance and high environmental sealing to IP68 in both mated and unmated conditions. Resilient even in severe conditions, the RoHS compliant black-silver plating is both low-luster and corrosion-resistant. Amphenol LTD Terrapin Miniature Push-Pull Circular Connectors are Gigabit ethernet and USB 2.0 compatible, making these connectors well-suited for ruggedized routers, military LAN switches, harsh environment data collection, robotics, battlefield communications, and mass transit communications. Amphenol Pcd offers the miniature Terrapin connectors with design options such as an optional locking mechanism, multiple shell sizes with up to 37 contacts, and standard or tailored overmold solutions.

Features

Miniature footprint provides space savings compared to traditional interconnects
Anti-vibration coupling
Quick release breakaway
- Fast, safe, connect and disconnect
- Release in snagging situations
- Reduced interconnection damage
Latched version allows connectors to be locked together
Common plug connector is suitable for mating with both snatch and latch-style receptacles
Sealed to IP68; provides a high degree of sealing to protect against dust and water ingress in both mated and unmated conditions

2000 + matings; mating durability is four times greater than MIL-DTL standard bayonet and thread coupling connectors
Multiple keying options; five keying options to prevent mismating
Integral backshell provides 360⁰ screening and quick termination with no special tooling or training required
Gigabit Ethernet and USB 2.0 compatible
Suitable for overmolding
- Standard or tailored overmold solutions
- Waterproof
- Aesthetically uniform product
RoHS compliant
