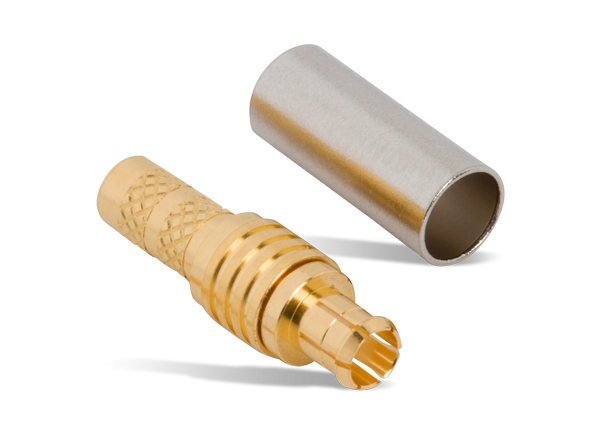

Amphenol RF 12G MCX Connectors support data rates up to 12Gbps, enabling the transmission of high-resolution uncompressed video signals. The series provides 4K and ultra-HD quality signals in a micro-miniature package size and is ideal for broadcast modules and video routers. Amphenol RF 12G SDI 75Ω MCX interconnect solutions are available as PCB connectors with edge-mount, straight, and right-angle configurations or as cable connectors for an industry-standard Belden 4855R cable. These 12G MCX connectors operate in a -65°C to +165°C temperature range.
12Gbps performance per SMPTE standard
One channel for 4K or ultra-HD quality
Variety of PCB and cable products
Familiar push-on coupling mechanism
4K/8K video cameras
DC to 12GHz frequency range
1.22 (20dB) maximum (DC to 6GHz)
1.43 (15dB) maximum (6GHz to 12GHz)
500VRMS minimum dielectric withstanding voltage
-65°C to +165°C operating temperature range
Amphenol RF MCX Connectors & Adapters
Provides broadband capability though 6GHz with a snap-on connector design.
