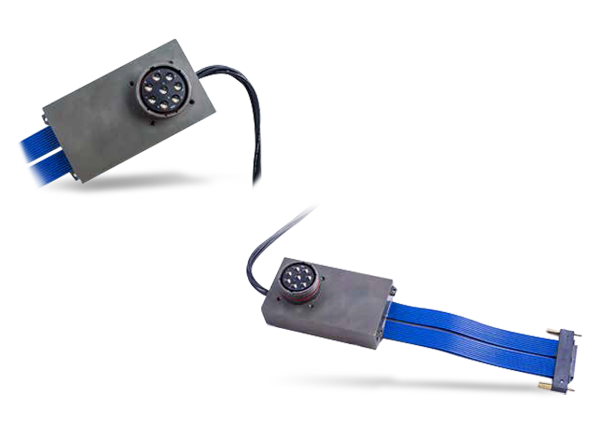

Amphenol Aerospace Quad 10GBASE-T to XAUI Converters add a level of ruggedization to high-speed signal protocol conversion, combining transformer coupling and SerDes technology. These flexible converters feature natural convection cooling (without a fan or cold place), four 10G Ethernet channels, and eight high-speed split-pair quadrax contacts capable of 6.25Gbps. The EMI/EMC compatible 10GBASE-T copper interface has a D38999 shell size 25, while the XAUI interface uses a Samtec Q series® high-speed cable assembly. Amphenol Aerospace Quad 10GBASE-T to XAUI converters are ideal for routing multiple 10-Gigabit Ethernet connections into systems and to and from circuit boards.
10GBASE-T to/from XAUI protocol conversion
IEEE 802.3an compliant
10GBASE-T copper interface
D38999 shell size 25 with standard rotations available
8 high-speed split-pair quadrax contacts capable of 6.25Gbps
Allows for 4 ports of 10G Ethernet
Samtec Q Series® high-speed cable assembly
Low-power consumption, <5W
Natural convection cooled (no fan or cold plate required)
-40°C to +85°C operating temperature (-50°C to +125°C storage)
Routing multiple 10-Gigabit Ethernet connections
To and from circuit boards
Amphenol Aerospace High-Speed Media Converters
Converter modules designed for rugged military/commercial applications on land, air, and sea.
