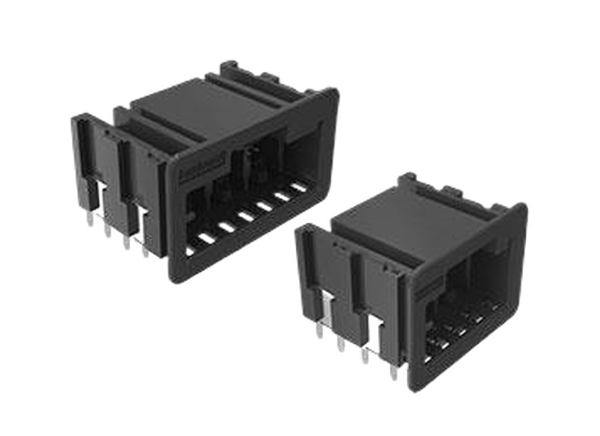

Amphenol Commercial NETBridge™ Automotive Ethernet Connectors
Amphenol Commercial NETBridge™ Automotive Ethernet Connectors offer a 15mΩ maximum contact resistance, 3A current rating, and 500VAC dielectric withstanding voltage. These connectors are a part of the NETBridge connector system that is designed for automotive environments and can transmit up to 100Mbit/s and 1Gbit/s, according to IEEE 100BASE-T1 and 1000BASE-T1. NETBridge connectors feature UL 94V-0 housing with nickel and tin contacts. NETBridge is developed in accordance with USCAR-2, VDAAK LV214, and ISO8092-2. The automotive-grade Ethernet connection system uses twisted-pair cables to transmit data. Amphenol Commerical NETBridge Automotive Ethernet Connectors are ideal for use in various automotive applications, including body control, telematics, multimedia, and infotainment.
Features
- UL 94V-0 housing
- Brass contacts
- Phosphor-bronze shell
- 3A current contact rating
- 100MΩ min. at 500VDC insulator resistance
- 15mΩ contact resistance
- 500VAC dielectric withstanding voltage
- 0.50mm x 0.40mm tab terminal system
- Class V1 vibration
- -40°C to +100°C operating temperature range
Applications
- Body control
- Safety
- Security
- Comfort
- Advanced Driver Assistance Systems (ADAS)
- Telematics
- Multimedia
- Infotainment
- GPS
- Navigation
- Cameras
