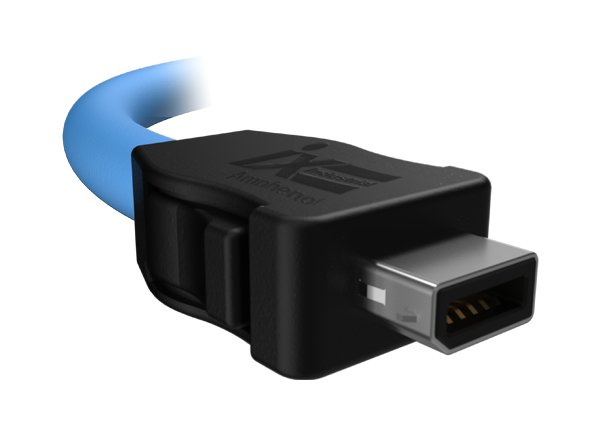

Amphenol Commercial ix Industrial™ IP20 Connectors
Amphenol Commercial ix Industrial™ IP20 Connectors enable Internet of Things (IoT) connectivity for Ethernet and other industrial protocols through all levels of an operation. Amphenol Commercial ix Industrial IP20 Connectors are 10mm-pitch connectors featuring two-point metal latches. The series is just 25% of the size of an RJ45 connector, allowing greater port density and mating security. These connectors are Power over Ethernet (PoE) capable and provide data performance to Cat6A level (10GBASE-T). The series also features 360° shielding through the mated pair for superior electromagnetic interference (EMI) protection.
Features
- High data-rate performance for 10G Ethernet, with PoE capability
- High electromagnetic interference (EMI) protection for noisy environments
- Increased port density compared to RJ45
- Robust two-point metal latches for secure mating
- Fully intermateable with ix Industrial products from other authorized vendors
Applications
- Data
- Switches
- Traffic control
- Monitoring systems
- Medical
- Healthcare
- Medical equipment
- Industrial and instrumentation
- Industrial Internet of Things (IIoT)
- Factory / process automation
- Robotics
- Building automation
- Test equipment
Specifications
- 30mΩ maximum (per IEC 60512-2-1, Test 2a) initial contact resistance
- 100mΩ maximum (per IEC 60512-2-1, Test 2a) shielding resistance
- 500MΩ minimum at 500VDC (per IEC 60512-3-1, Test 3a) insulation resistance
- 500VDC (per IEC 60512-4-1, Test 4a, Method A) dielectric withstanding voltage
- Complies with IEC61076-3-124
- 75% smaller than RJ45
- 5000 mating cycles
- 1.5A at 40°C (per IEC 60512-5-2, Test 5b) current rating
- Voltage rating
- 50VAC maximum
- 60VDC maximum
