Amphenol RF IP67 TNC & RP-TNC Connectors & Adapters

Amphenol RF IP67 TNC and RP-TNC Connectors offer a wide selection of waterproof IP-rated and tamper-resistant interface connectors. The connectors provide strong protection to secure against anything that may compromise system performance. These TNC and RP-TNC connectors operate at 50Ω impedance and utilize the familiar threaded interface that ensures mating stability and reliable electrical performance. This interface is available in a variety of configurations including a front-mounted bulkhead jack. These TNC and RP-TNC connectors operate from -65°C to +165°C temperature range. Typical applications antennas, industrial, wireless, military, and broadband.


  • Available in a variety of configurations:
    • Straight plugs
    • Right-angle plugs

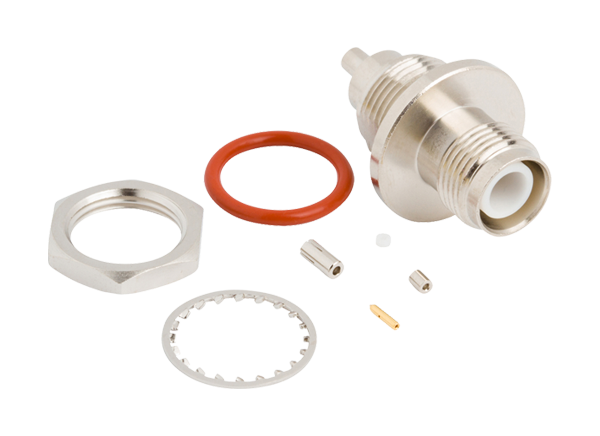

    • Bulkhead jacks with:
      • Rear mount and front mount
    • Jack with free-hanging
    • PCB bulkhead mount
  • Waterproof IP67 rated
  • Tamper-resistant
  • Threaded coupling mechanism
  • Durable construction


  • Antennas
  • Industrial
  • Wireless
  • Military
  • Broadband


  • 50Ω impedance
  • 11GHz maximum frequency
  • 1500VRMS maximum dielectric withstanding voltage
  • 5000MΩ minimum insulation resistance
  • 500 minimum mating cycles
  • -65°C to +165°C operating temperature range
Publicado: 2021-06-04 | Atualizado: 2023-08-01
