Amphenol Sine Systems ARC Series™ Connectors

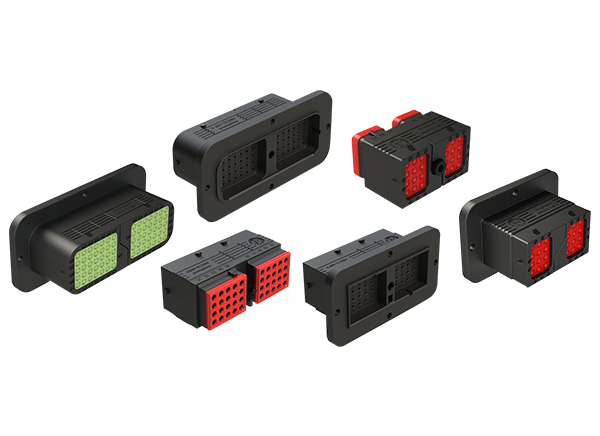

Amphenol Sine Systems ARC Series™ Connectors are a rugged, heavy-duty, environmentally sealed, thermoplastic, rectangular connector series where high pin counts are required in situations with controlled and/or uncontrolled environmental conditions. ARC Series connectors are available with 20, 40, or 70 positions and feature bonded front seals on the plugs. Amphenol Sine Systems ARC Series Connectors are currently available as in-line plugs and flange mount receptacles.


  • All plugs and receptacles are IP68/69K rated (in mated condition)
  • Available in 24, 40, and 70 positions
  • Accepts contact size 16 (13A) / 14-20AWG
  • Jackscrew with threaded insert for mating
  • Bonded front seals on plugs
  • Normal or reduced diameter rear seals
  • Utilizes A Series™ contacts
  • Available in A, B, C, and D keying options
  • Compatible with existing standard products industry-wide


  • Transportation
  • Heavy equipment
  • Agriculture
  • Automotive
  • Off-highway
  • Alternate energy
  • Marine
  • Demanding interconnect architectures


  • 13A maximum current rating
  • 250V AC/DC voltage rating
  • Accepts size 16 contacts
  • 20AWG to 14AWG range
  • IP68 (1m of water for 24 hours), IP69K mated
  • Thermoplastic housing
  • Silicone rubber sealing material
  • >100 mating cycles
  • -55°C to +125°C temperature range
