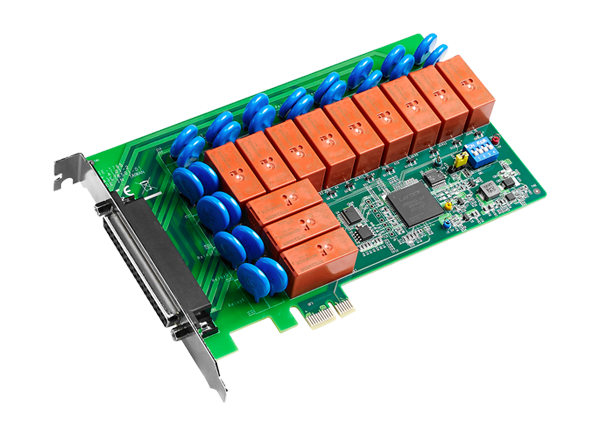

Advantech PCIE-1765-AE 12-Ch Relay PCIe Card

Advantech PCIE-1765-AE 12-Ch Relay PCIe Card features 12 onboard SPDT relays built-in, making the device ideal for applications such as device ON/OFF control and power switching. Each relay is equipped with a red LED indicator to show its ON/OFF status to ensure easy monitoring.

The Advantech PCIE-1765 Card features a built-in DIP switch that defines each card's ID when multiple PCIE-1765 cards are installed on the same PC chassis. The PCIE-1765 card is a plug-and-play device that fully complies with PCIE Specifications, Rev 2.0. All bus-related settings, such as the base I/O address and interrupt lines, are automatically configured with the plug-and-play function.

Features

  • 12 relay output channels
  • LED indicators to show activated relays
  • 12 Form C-type relay output channels
  • Output status read-back
  • Keep relay output values after emergency reboot

Applications

  • Industrial On/Off control
  • SMT/PCB machinery
  • Semiconductor machinery
  • Education and research
  • External relay driving

Specifications

  • Relay output
  • 12 Channels
  • Relay type SPDT, Form C
  • Contact rating of 2A@250VAC, 2A @ 30VDC
  • Max. switching power of 500VA, 60W
  • Max. switching voltage of 400VAC, 30VDC
  • Breakdown voltage 1000VAC
  • 7ms Operate time typical
  • 2ms Release time typical
  • 100mΩ max. Resistance contact
  • 30 x 106 cycles min. @ 2A/250VAC life expectancy

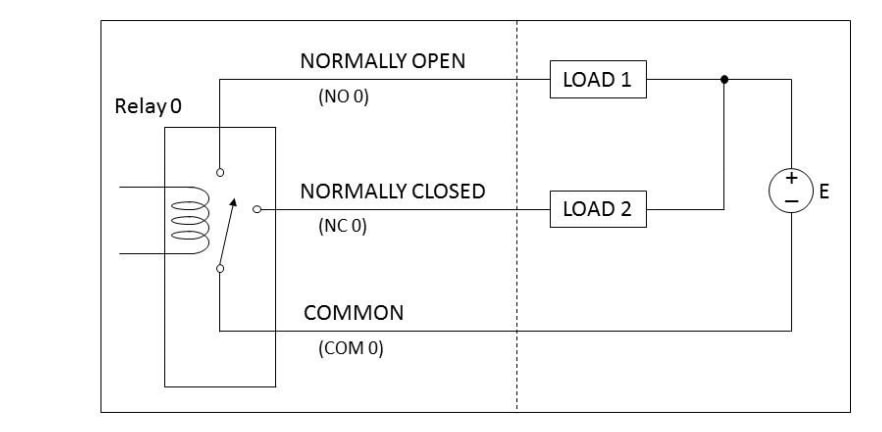

Relay output connection

Application Circuit Diagram - Advantech PCIE-1765-AE 12-Ch Relay PCIe Card

Block Diagram

Block Diagram - Advantech PCIE-1765-AE 12-Ch Relay PCIe Card
