Adafruit MS8607 PHT Sensor

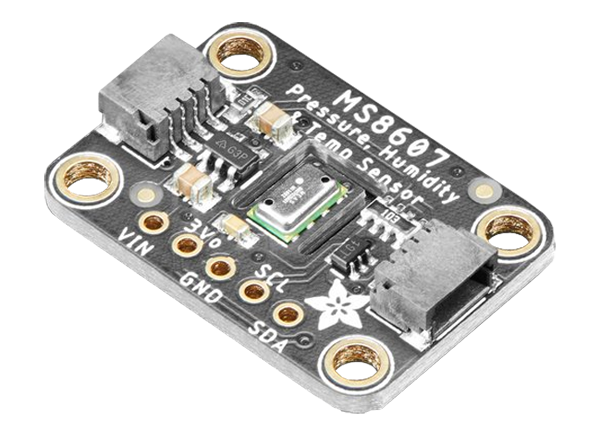

Adafruit MS8607 Pressure-Temperature-Humidity (PHT) Sensor provides factory-calibrated data as 16-bit values and is available over an I2C bus for a simple two-wire MCU connection. This sensor offers pressure measurement accuracy at +/- 2hPa, +/- 3% relative Humidity (rH), and 1°C temperature. The MS8607 features low power consumption of 0.78µA and can be used with either 5V and 3.3V devices. This sensor is available with a breakout board that offers SparkFun Qwiic compatible STEMMA QT connectors for easy plug-and-play.


  • I2C interface
  • Integrated pressure, humidity, and temperature sensor
  • Fully factory calibrated sensor
  • 5mm x 3mm x 1mm QFN package
  • 0.016mbar, 0.04%RH, 0.01°C high resolution module
  • Operating range:
    • 10mbar to 2000mbar air pressure range
    • 0%RH to 100%RH relative humidity range
    • -40°C to 85°C temperature range


Publicado: 2020-11-11 | Atualizado: 2020-12-12
