Adafruit Feather M4 CAN Express with ATSAME51

Adafruit Feather M4 CAN Express with ATSAME51 features the SAME51 chipset with built-in CAN bus support. The ATSAME51J19 comes with a 120MHz Cortex M4 with floating point support and 512KB Flash and 192KB RAM. It has support for extra peripherals for CAN interfacing projects. The Feather M4 CAN Express also has a CAN transceiver chip and a 5V converter to generate 5V power to the transceiver when running on a battery. The two CAN signal lines and ground reference signal are available on a 3-pin 3.5mm terminal block.


  • Measures 2.0" x 0.9" x 0.28" (50.8mm x 22.8mm x 7mm) without headers soldered in
  • Light as a (large?) feather - 5 grams
  • ATSAME51 32-bit Cortex M4 core running at 120MHz, 32-bit, 3.3V logic and power
  • Hardware CAN bus support with built-in transceiver, 5V booster, and terminal connection
  • Floating point support with Cortex M4 DSP instructions
  • 512KB flash, 192KB RAM
  • 2MB SPI FLASH chip for storing files and CircuitPython code storage.
  • 32.768kHz crystal for clock generation & RTC
  • 3.3V regulator with 500mA peak current output
  • USB Type C connector for USB native support comes with USB bootloader and serial port debugging
  • Built-in crypto engines with AES (256 bit), true RNG, Pubkey controller
  • 21 x GPIO pins with following capabilities: Dual 1 MSPS 12 bit true analog DAC (A0 and A1) - can be used to play 12-bit stereo audio clips
  • Dual 1 MSPS 12 bit ADC (6 analog pins some on ADC1 and some on ADC2)
  • 6 x hardware SERCOM - Native hardware SPI, I2C, and Serial all available
  • 16 x PWM outputs - for servos, LEDs, etc
  • I2S input and output
  • 8-bit Parallel capture controller (for camera/video in)
  • Built-in 100mA lipoly charger with charging status indicator LED
  • Pin #13 red LED for general purpose blinking
  • Power/enable pin
  • 4 mounting holes
  • Reset button

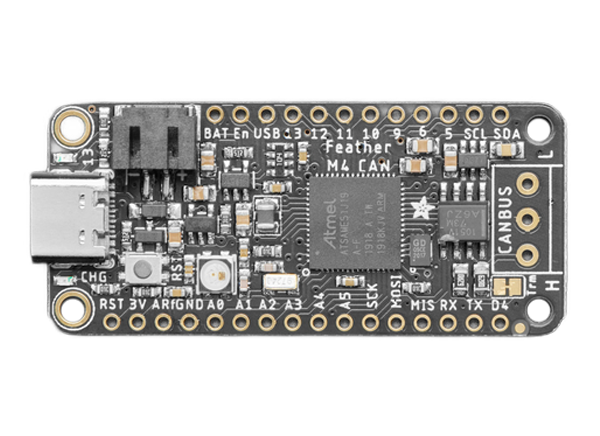

Adafruit Feather M4 CAN Express with ATSAME51

Dimensions (MM)

Mechanical Drawing - Adafruit Feather M4 CAN Express with ATSAME51
