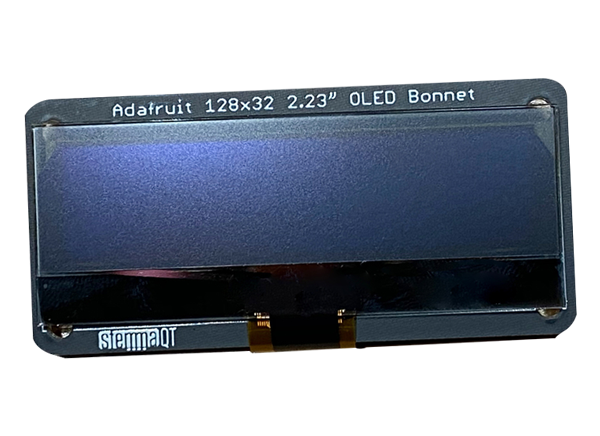

Adafruit 2.23" Monochrome OLED Bonnet

Adafruit 2.23" Monochrome Organic LED (OLED) Bonnet is designed to snap onto any Raspberry Pi computer to provide a vivid display. This OLED fits on flat surfaces that have an open top to insert the display. The bonnet comes with a 2.13" diagonal monochrome 128x32 OLED with sharp white pixels. This monochrome OLED works with any Raspberry Pi computer that has a 2x20 connector, such as the Pi B+, Pi 2, Pi 3, Pi 4, and Pi zero.

Schematic

Schematic - Adafruit 2.23

Videos
