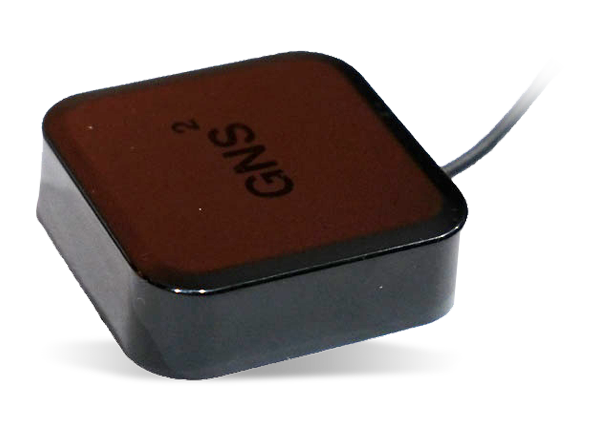

Abracon AEARBA048014-SG3 GNSS External Antenna

Abracon AEARBA048014-SG3 Global Navigation Sattelite System (GNSS) External Antenna is specifically designed for GPS/GLONASS/BEIDOU applications. This multi-band antenna operates at 1561.098MHz ± 2.046MHz frequency for BeiDOU, 1575.420MHz ± 1.023MHz frequency for GPS, and 1602MHz ± 8MHz frequency for GLONASS. The AEARBA048014-SG3 GNSS external antenna feature integrated Low-Noise-Amplifiers (LNA) that facilitate high gain. This multi-band antenna offers Right-Hand Circular Polarization (RHCP) and 50Ω impedance. The Abracon AEARBA048014-SG3 GNSS External Antenna has a low Voltage Standing Wave Ratio (VSWR) and is ideal for GPS/GLONASS/BEIDOU, Internet of Things (IoT), M2M, surveillance, telematics, and instrumentation applications.

Features

  • External Multiband GNSS antenna
  • Supports GPS/GLONASS/BEIDOU
  • Active antenna with integrated LNA
  • Low VSWR across bands
  • SMA connectors
  • Adhesive mounting

Specifications

  • Operating Frequency:
    • 1561.098MHz ± 2.046MHz for BeiDou
    • 1575.420MHz ± 1.023MHz for GPS
    • 1602MHz ± 8MHz for GLONASS
  • 50Ω impedance
  • RHCP polarization
  • 3V to 5.5V input voltage range

Applications

  • GPS/GLONASS/BeiDou
  • IoT
  • M2M
  • Surveillance
  • Fleet management and asset tracking
  • Autonomous driving
  • Telematics
  • Agriculture
  • Instrumentation

System Set-up

Block Diagram - Abracon AEARBA048014-SG3 GNSS External Antenna

Dimensions (mm)

Mechanical Drawing - Abracon AEARBA048014-SG3 GNSS External Antenna
