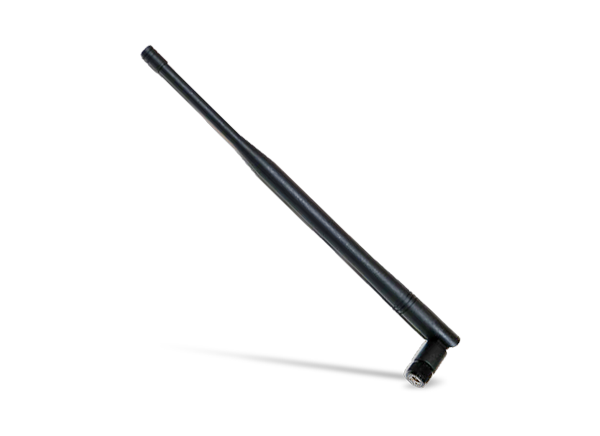

Abracon AEACAC254010-S169 External Antenna
Abracon AEACAC254010-S169 External Antenna delivers low Voltage Standing Wave Ratio (VSWR) with 2dBi gain. This external antenna operates at 169MHz frequency. The Abracon AEACAC254010-S169 External Antenna features linear polarization with 50Ω impedance. This external antenna is ideal for LPWA/LoRa/SigFox and ISM applications.
Features
- Low-frequency antenna
- Linear polarization
- SMA connector
Specifications
- 169MHz ± 3MHz operating frequency
- -40°C to +85°C operating temperature range
- 50Ω impedance
- 2.5dBi VSWR
- 2dBi gain
Applications
- LPWA/LoRa/SigFox applications
- ISM applications
- IoT
- Remote technology/monitoring
- Network devices
- Smart buildings
- Smart city
- Agriculture/environment
- Consumer tracking
Dimensions (mm)
